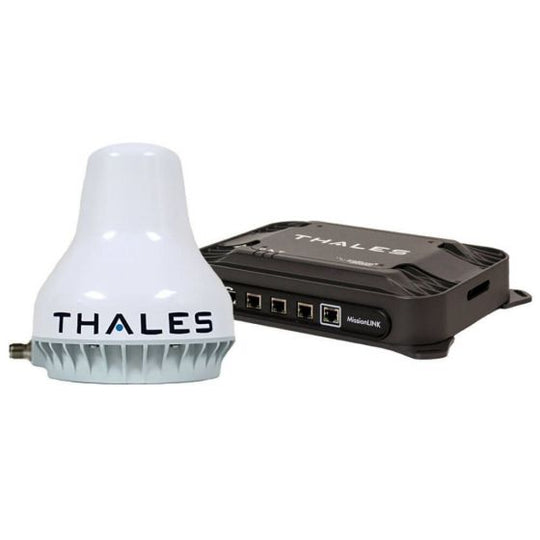

Thales MissionLINK 200
MissionLINK 200 provides truly global communications on any continent. It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets. It also includes built-in upgradeability to extend your investment and ensure peak speed and performance.
- Extendable Network via Radio Gateway: Satellite to Land Mobile Radio (LMR) extendable network through a unique radio gateway
- Easy Integration: Easily integrates with terrestrial cellular with built-in preferred routing switch
- Simultaneous Functionality: Voice and data enabled delivering up to three (3) dedicated voice channels

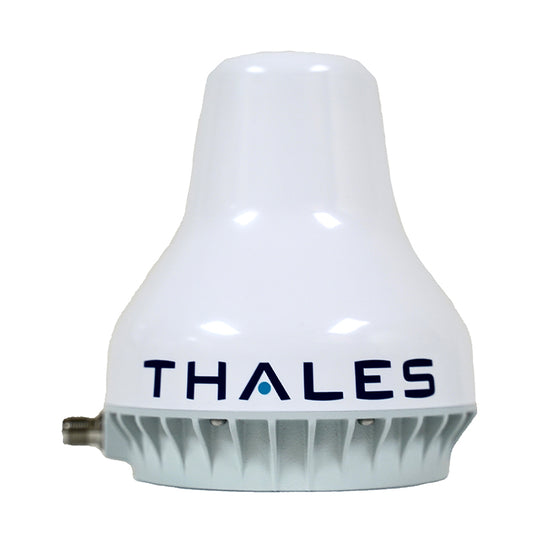

- Antenna: Low gain omni-directional antenna with no moving parts to enable truly global connectivity
- Range of Communications Applications: Safety services, tracking and location services, out-of-band management, operational reporting, telemedicine, and data transfers
- Wi-Fi Access Point: Embedded 802.11b/g Wi-Fi Access Point
- User-Friendly Interface: With application-enabled functionality for Android and iOS devices
- Emergency Alerts: Real-time emergency alert and distress notifications
Exclusive Iridium Certus® 200 Connectivity
Thales MissionLINK 200 provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a small, simple, adaptable and robust design. MissionLINK 200 operates using Iridium Certus 200 broadband services over Iridium’s network of 66 satellites that cover the entire planet. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and users on-the-move.
Technical Specifications
Dimensions
- 12 in x 9 in x 2.3 in (30.5 cm 22.9 cm 5.8 cm)
- Antenna : 14 in dia. x 4 in h (12.5 cm dia. x 14 cm h)
Weight
- 7.5 lb (3.4 kg)
- Antenna : <1.5 lb (0.7 kg)
Durability
- MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
- IP67
Data Network
- Iridium Certus / Next Satellite Network
Interfaces

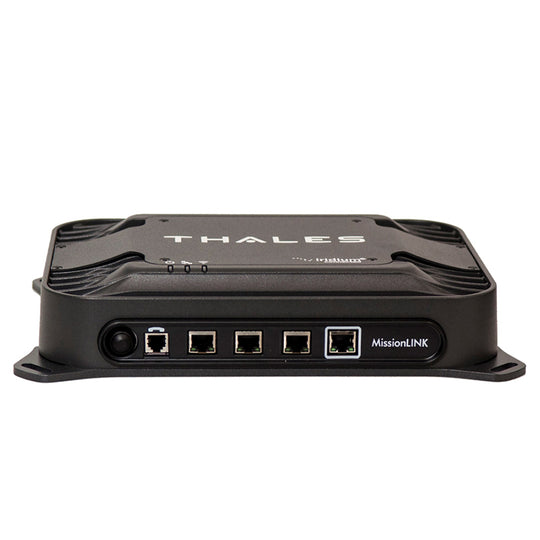

- Front connectors
- RJ-45 LAN (3) Class 2 PoE
- RJ-45 WAN (1) for cellular connection
- RJ-14 POTS
- Rear Connectors
- DC Power Input (10-32V) MIL-STD1275D
- DC Power Input, +12V Regulated
- GPIO (RS-232, +12V out, DISTRESS, Radio
- Gateway, GPIO)
- TNC Connector, RF connection to Antenna
- Wi-Fi reverse SMA
- SIM slot
Certifications
- FCC
- CE
- ISED
- ITU
- RCM
- GITECKI
- REACH ROHS
- EC60945 (IEC 60945)
