AeroAntenna Iridium Antenna Mast Mount AT1621-142

AeroAntenna Iridium Antenna Mast Mount (AT1621-142)

Regular price$245.00
  • Satellite Network: Iridium

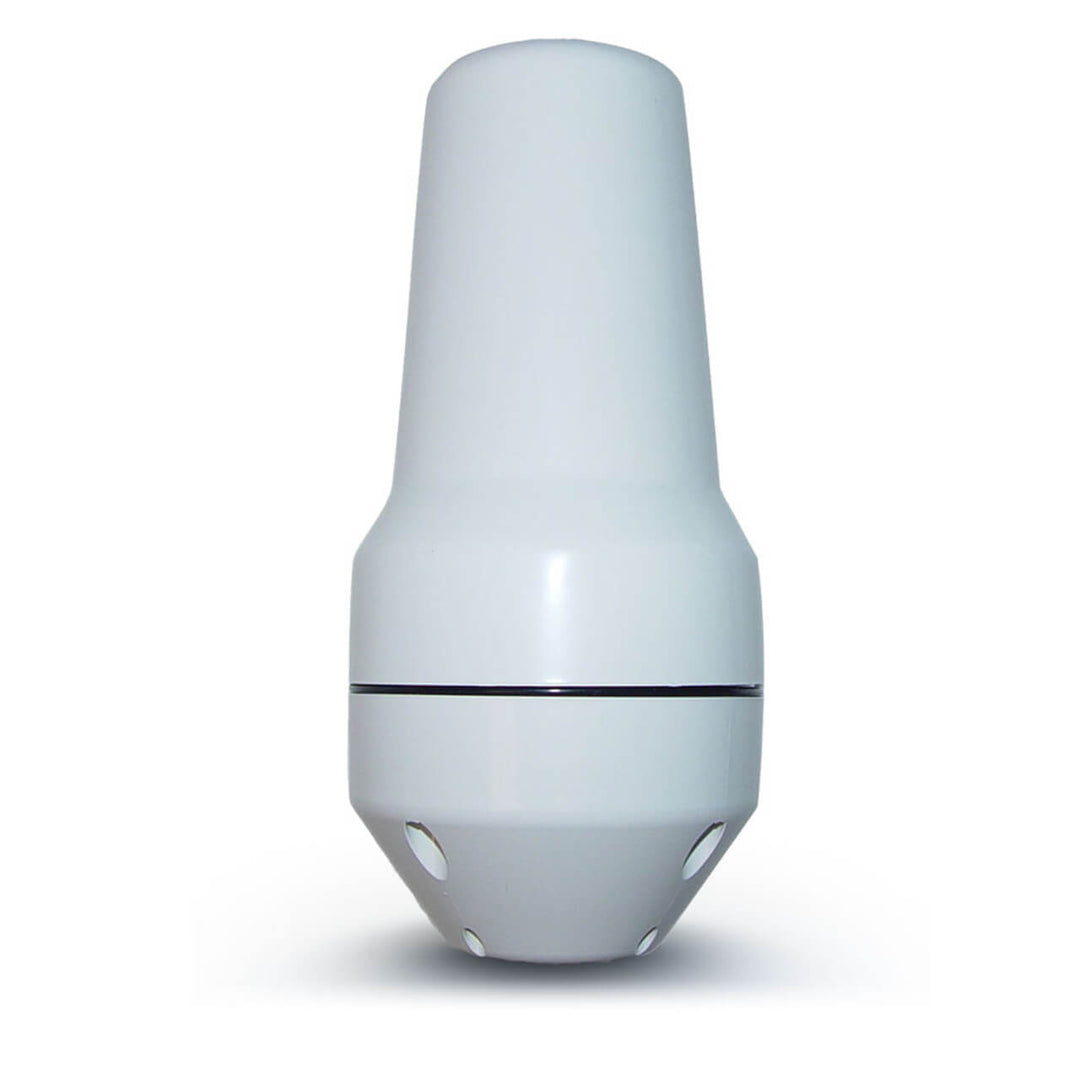

The AeroAntenna Iridium Antenna Mast Mount (AT1621-142) is an Iridium frequency Pole Mount Antenna designed for Fixed Base and Maritime applications. Designed to work with all Iridium-based voice and data communications devices.

The AeroAntenna Fixed Mast Antenna is specifically crafted to enhance reception for Iridium satellite phones, including the Iridium 9500, Iridium 9505, Iridium 9505A, Iridium 9555, and Iridium 9575 Extreme models, as well as the 9570 portable dock. Ideal for permanent in-building or marine installations, this antenna ensures outstanding performance without the need for a ground plane, making it well-suited for free-air operation.

Technical Specifications

  • Weight: 11 oz (311.85 g)
  • Length: 7.4" (18.7 cm)
  • Width (diameter): 3" (7.6 cm)
  • Polarization: Right hand circular
  • Axial Ratio: 3 dB
  • Max Finish: Weatherable Polymer
  • VSWR: less than 2.0:1
  • Radiation pattern:
  • 0.4dBic: 0° = 0°m
  • 1.4dBic: 0° < Zenith < 45°
  • -0.25dBic: 75° < Zenith < 82°
  • Antenna C=connector: TNC Female
  • Power: Power handling: 1W
  • Temperature: -40°C to 85°C (-40°F to 185°F)
  • Atmospheric pressure: Altitude: 20,000 ft
  • Rx F=frequency band: 1616 ヨ 1626 MHz
  • Connects to 1" threaded pipe (not included)
