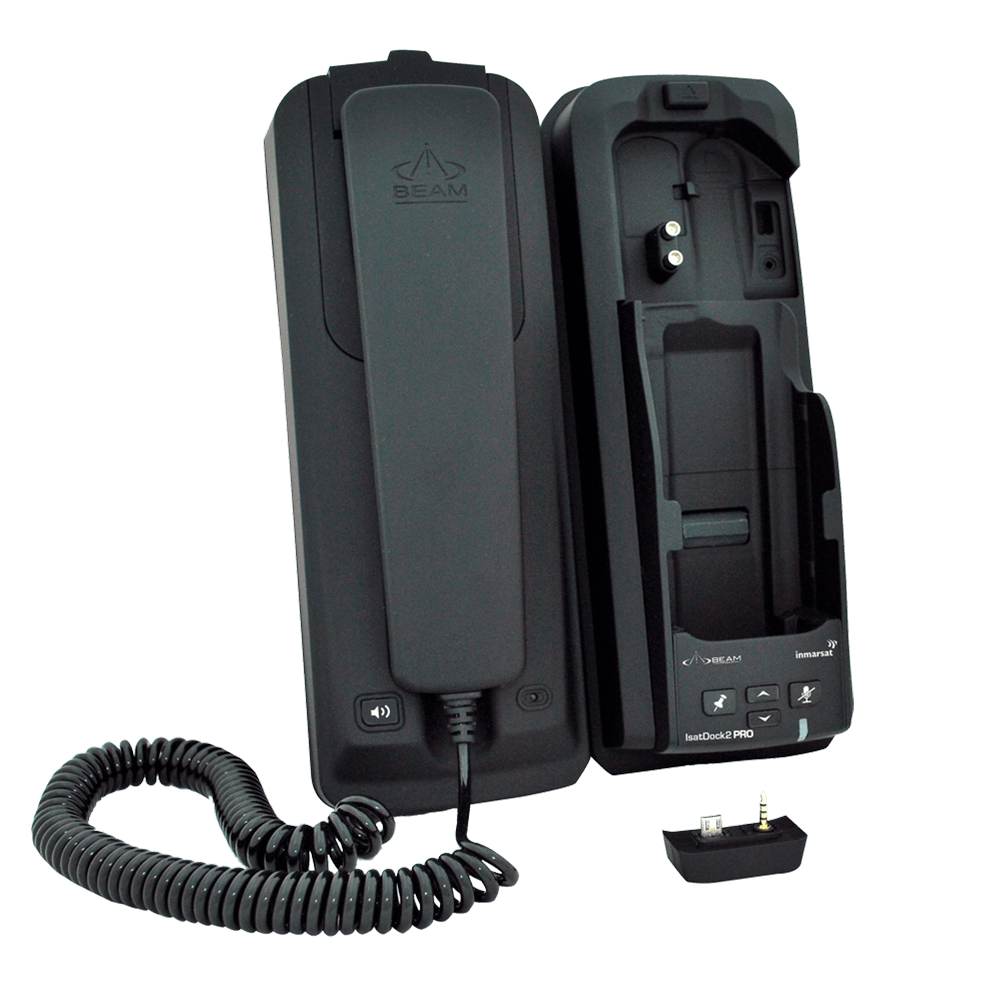

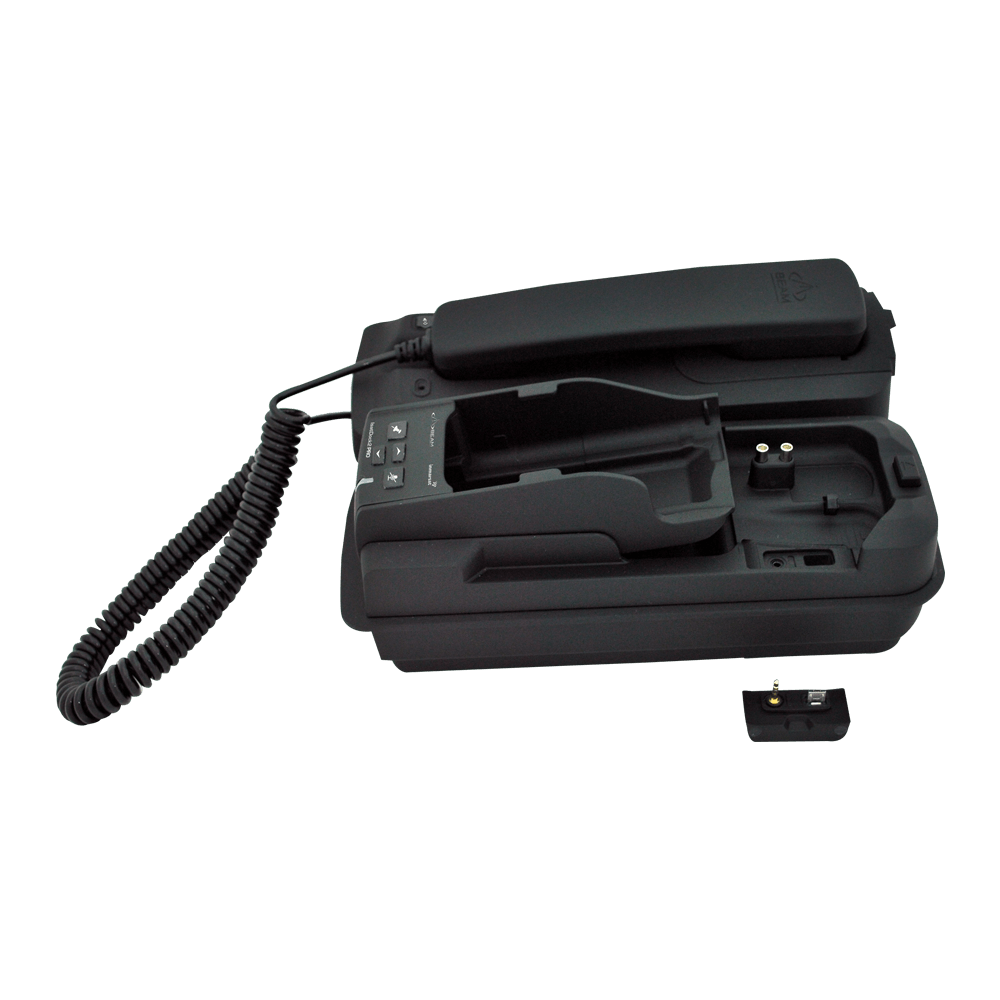

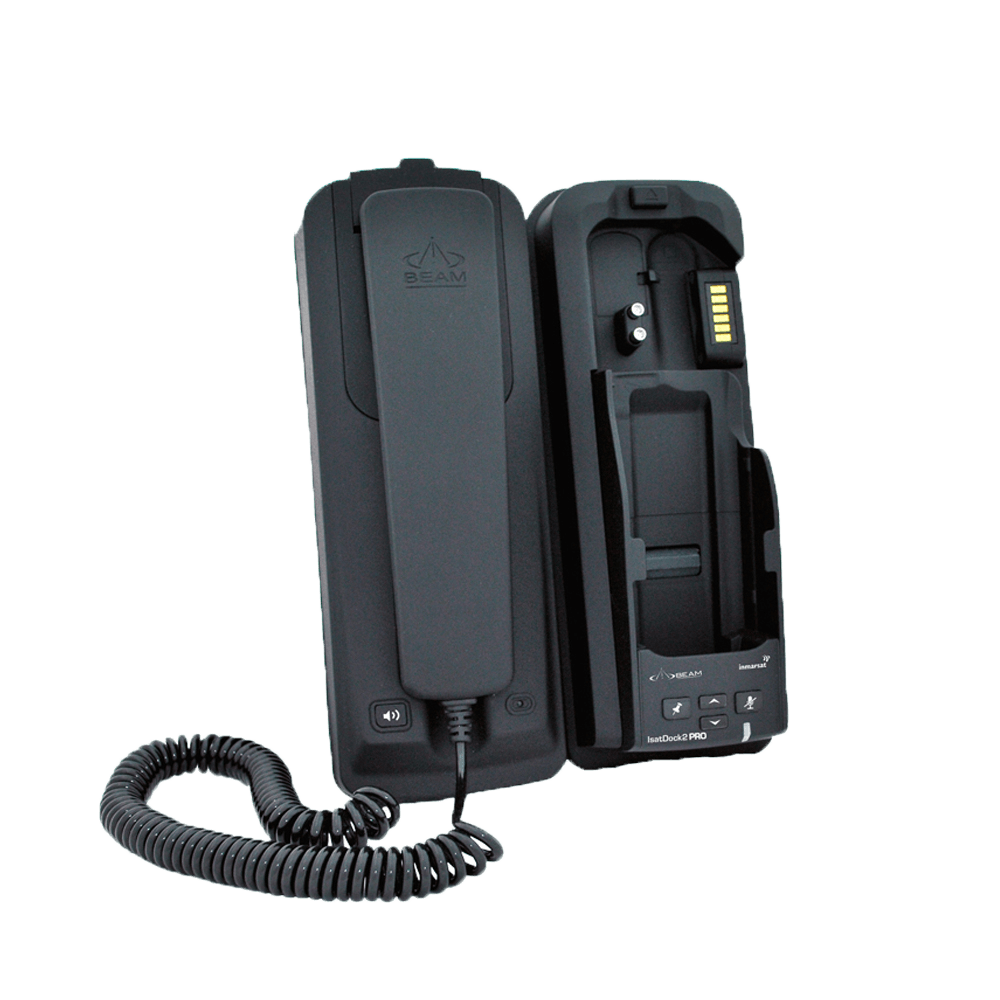

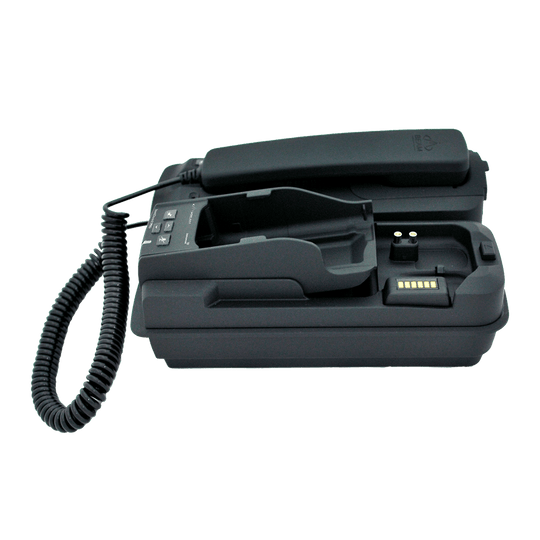

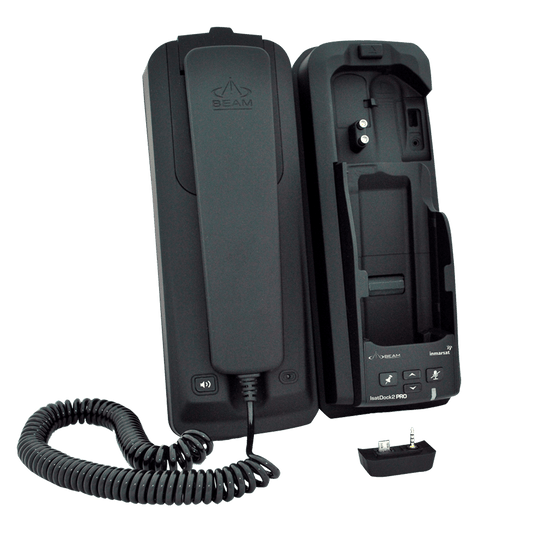

Beam IsatDOCK2 Pro Docking Station (ISD2Pro)
- Satellite Network: Inmarsat

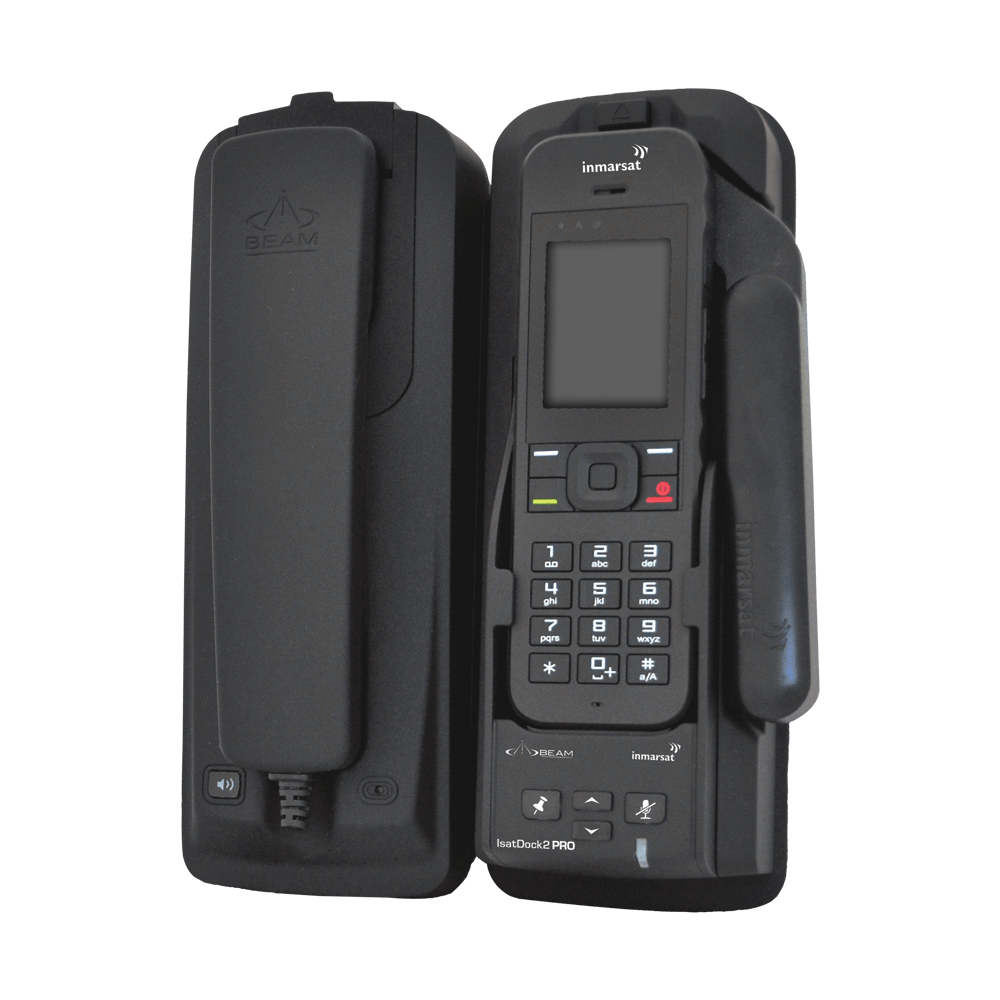

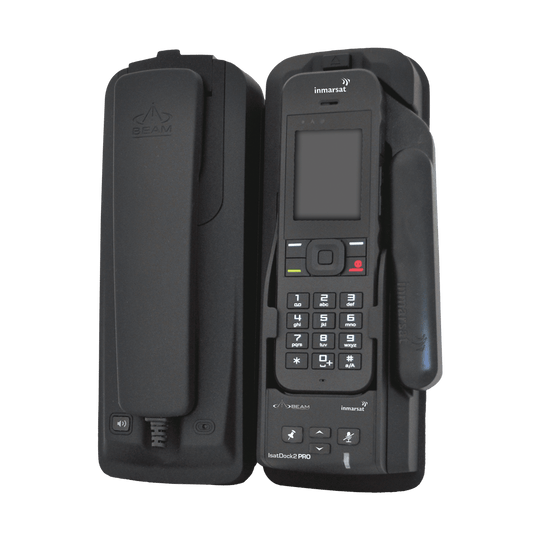

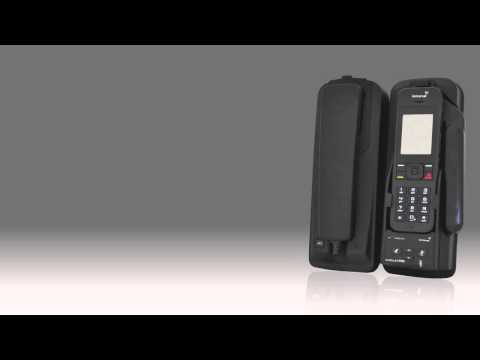

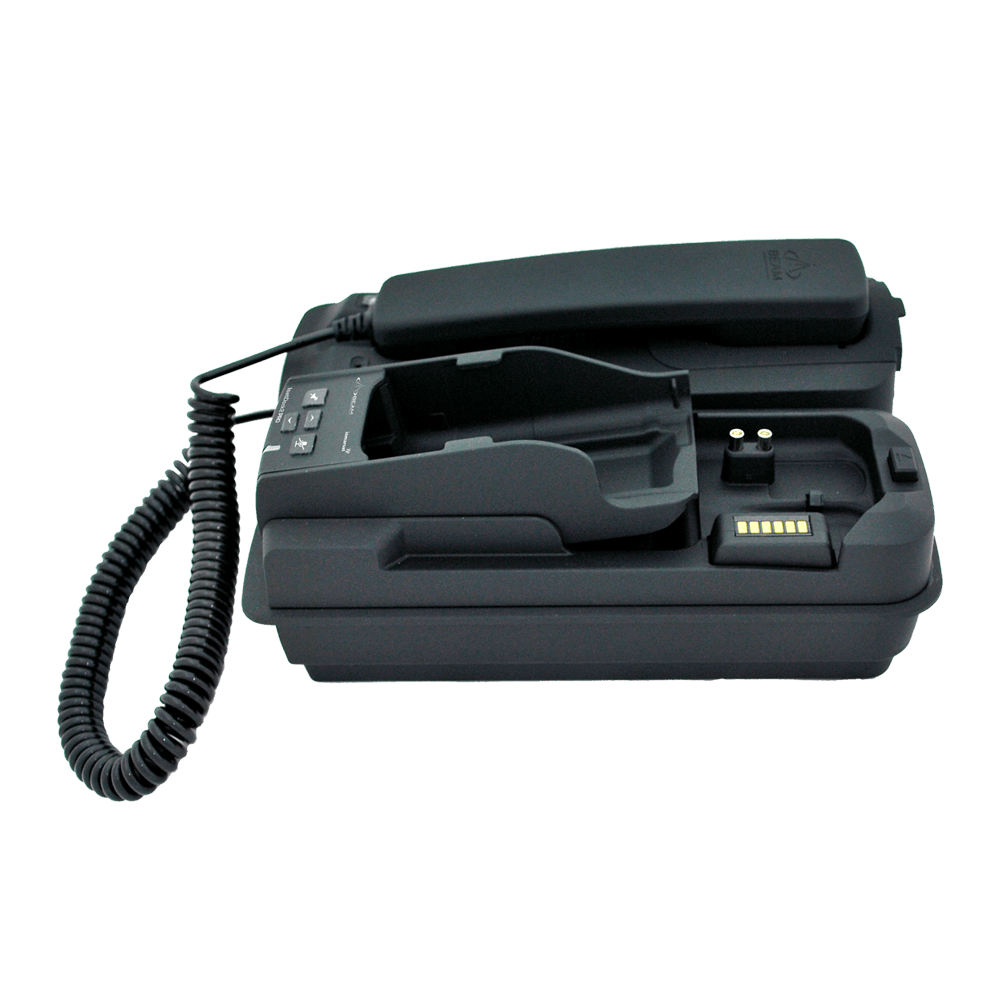

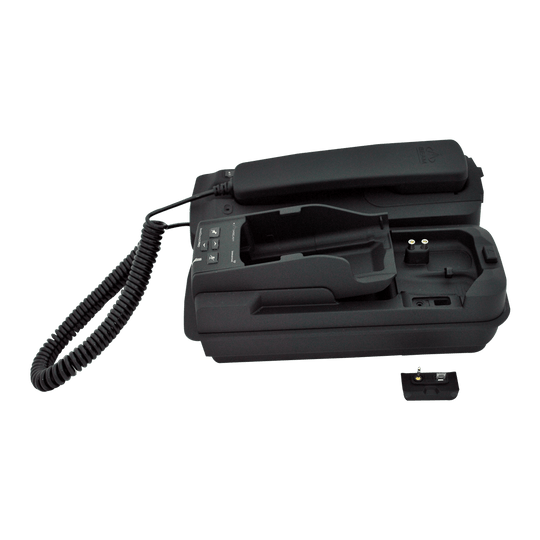

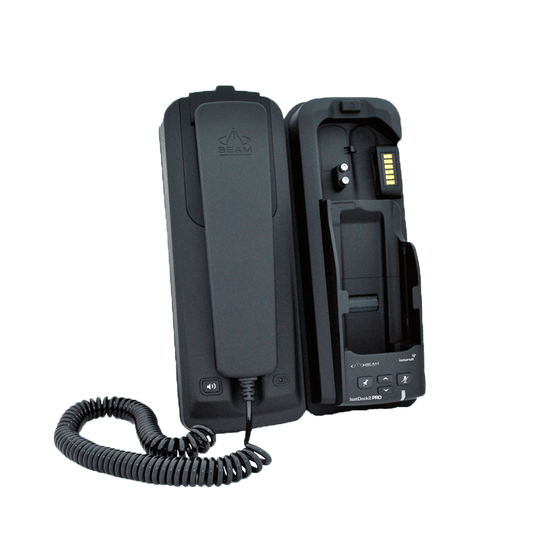

Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent docking station specifically designed for maritime, transport and fixed site applications. The IsatDock PRO 2 Dock supports voice services via Bluetooth, RJ11/POTS, hands-free speakerphone or the active privacy handset inbuilt to the terminal.
- The IsatDock2 PRO supports Personal Alert, Assistance Button and Tracking functionality of the IsatPhone 2 handset whilst docked.
- The intelligent RJ11/POTS interface enables cable runs of up to 600m to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
- IsatDock2 PRO has an in-built speakerphone for convenient handsfree operation.
Intelligent RJ11/POTS interface
The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones up to 600m or 2000’ from the dock itself.
Key Benefits and Features
- High quality all in one design
- Bluetooth connectivity, via IsatPhone 2
- RJ11 POTS interface, cable runs up to 600m/2000ft
- Dedicated Privacy Handset
- Voice, SMS and Circuit Switched Data capable
- Tracking and SOS (Via the IsatPhone 2 handset)
- USB data interface
- Accessory / Ignition sense
- 10-32V DC power input
- AC Plug pack included 110/240 input
- Supports Active and Passive Inmarsat antennas
- Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
- 2 year repair or replacement warranty
Technical Specifications
Interfaces/Connectors
- RJ11, up to 600m, PABX
- RJ9 privacy handset
- USB Micro for configuration
- Antenna connectors: SAT TNC female, GPS SMA female
Power supply
- 10 – 32V DC Input
- Included 110/240V AC Plug pack
- Standby + Charging 360mA, 4.3W
- Transmit + Charging 875 mA, 10.5W, max. 3.5A, 42W
Environment
- Operating Range: -22°F to 158°F (-30°C to 70°C)
- Battery Charging: 32°F to 113°F (0°C to 45°C)
- Storage: -31°F to 185°F (-35°C to 85°C)
- Humidity: <= 75 % RH
Certifications
- Inmarsat Type Approval
- EMC Compliance
- FCC
- CE Compliance
- Electrical Safety
- RoHS
- Industry Canada
- C-Tick
What's in the Box
- IsatDock2 PRO

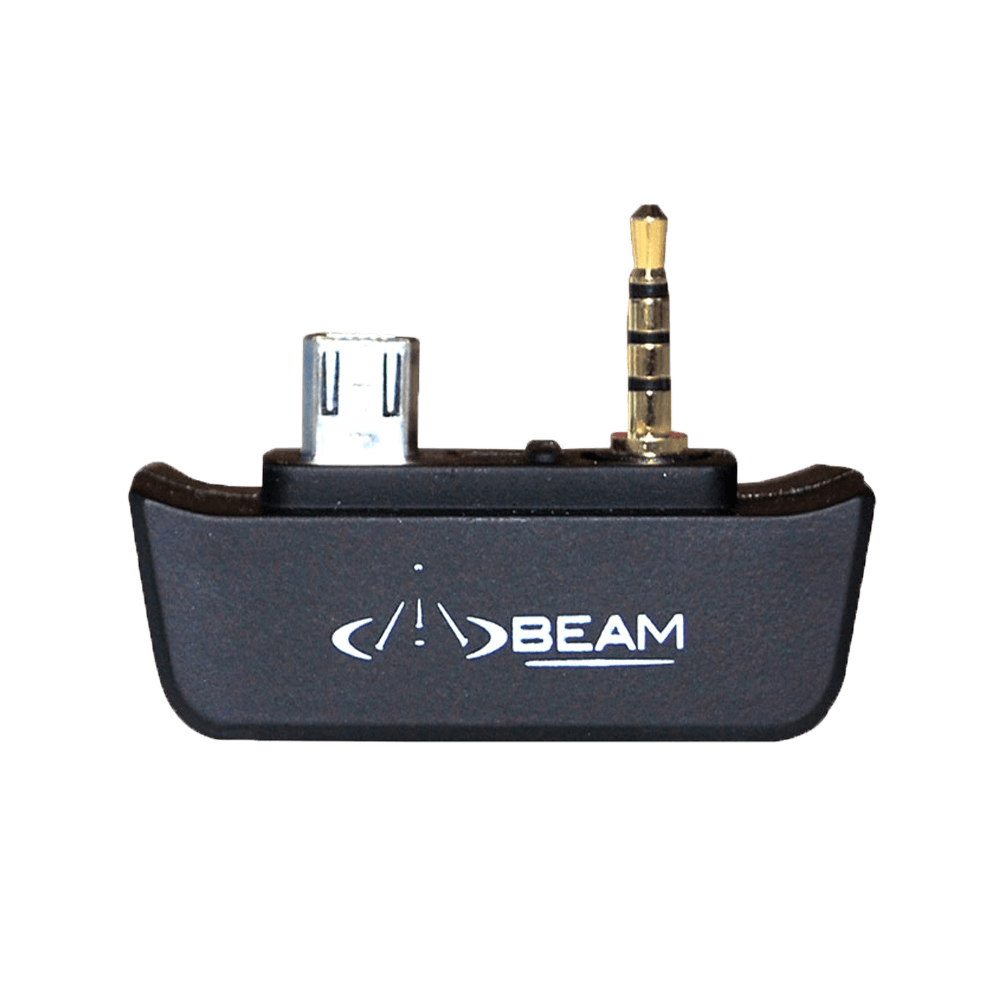

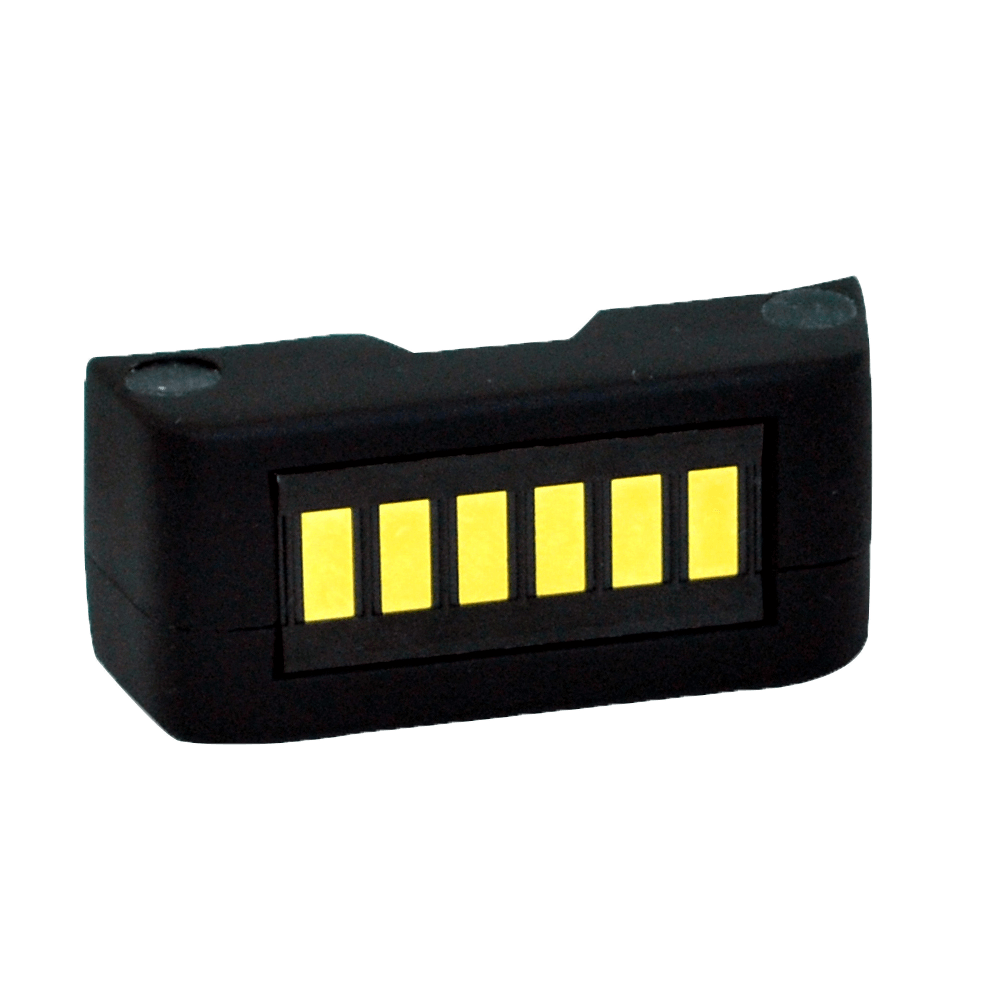

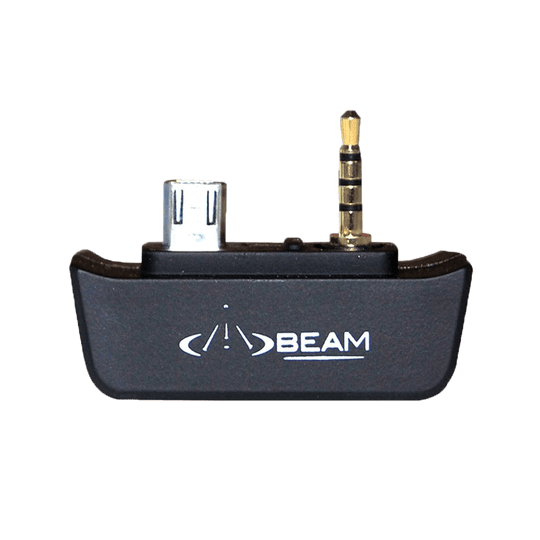

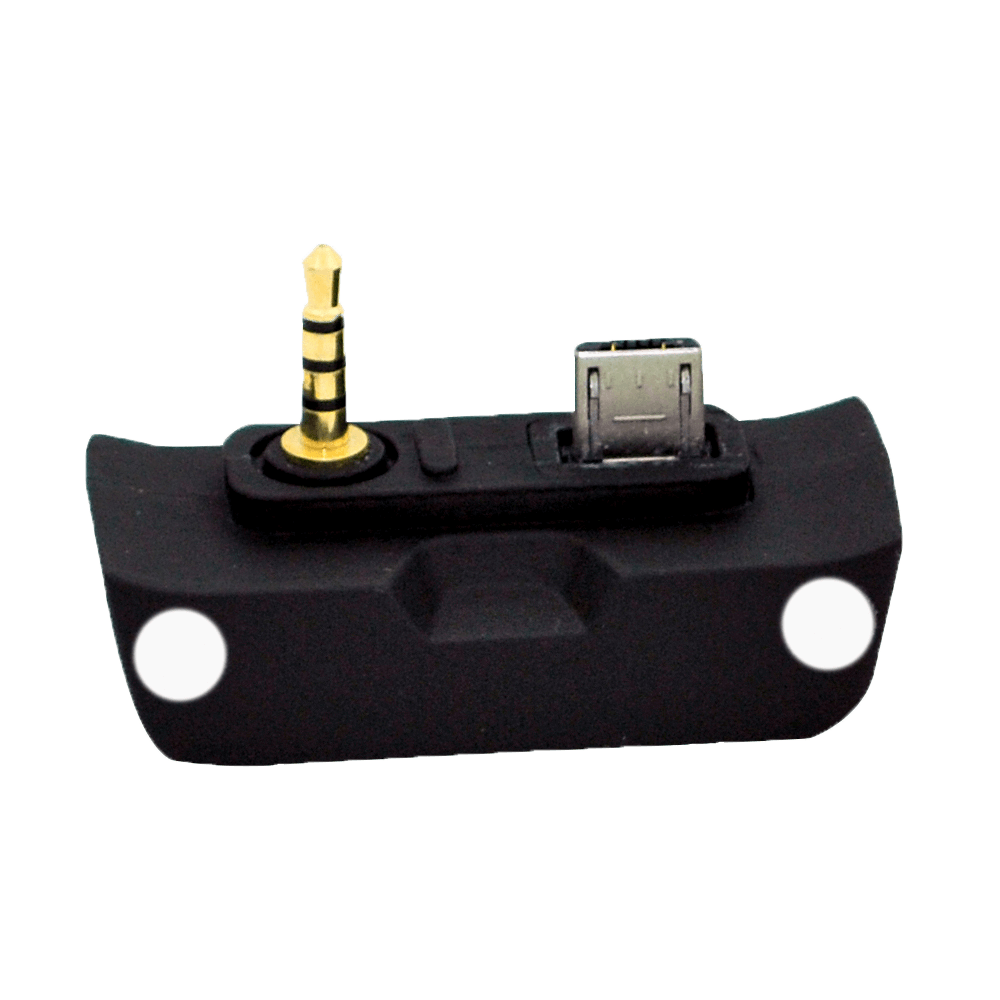

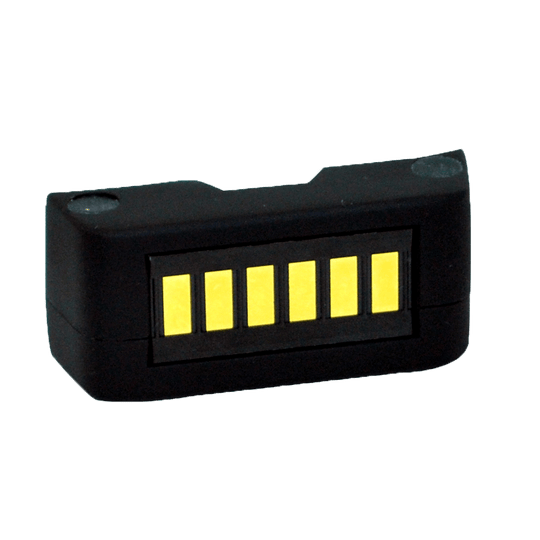

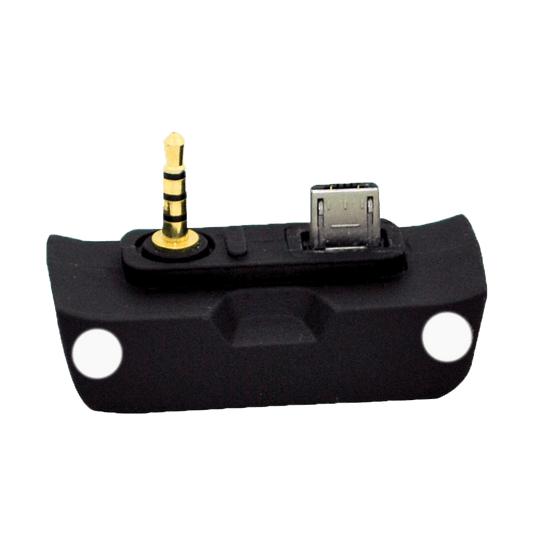

- 2 x IsatDock2 Adaptors
- 10-32 DC Power Cable
- 110-240V AC Plug Pack
- Privacy Handset
- Wall mounting plate
- User Manual
- Quick Start Guide
