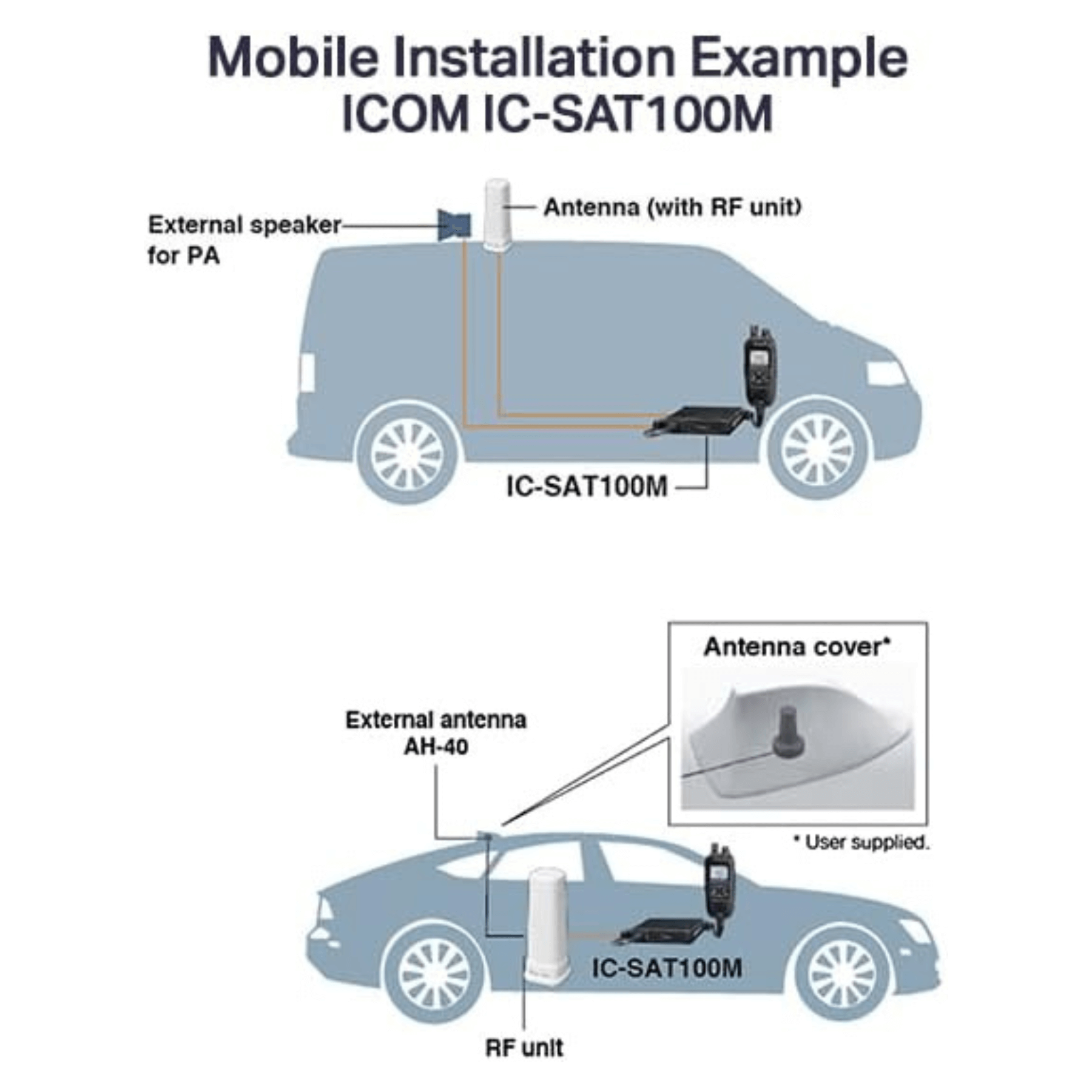

Icom IC-SAT100M Mobile Installation
Icom IC-SAT100M In-Building Installation

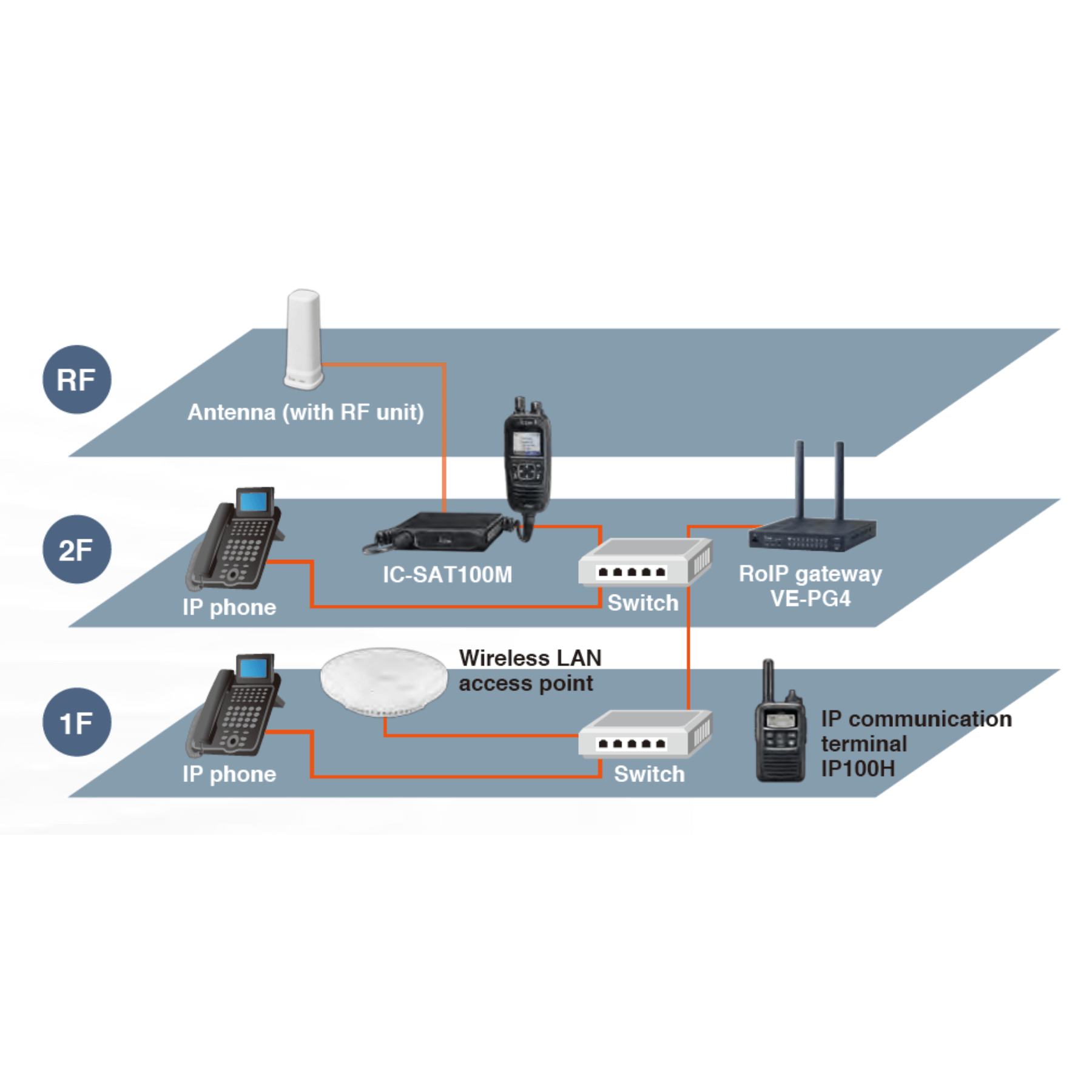

Advanced System Example with VE-PG4

Icom IC-SAT100M Satellite PTT Mobile Radio (Push-To-Talk)

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Network: Iridium

One-to-Many Satellite Communication for In-Building and In-Vehicle Use

The Icom IC-SAT100M is the dedicated satellite push-to-talk (PTT) radio, and is the only PTT radio offering real-time communications at the push of a button between a group of individuals, each of whom can be anywhere on the planet*.

Icom’s IC-SAT100M is a PTT satellite radio designed for fixed mount operations. Unlike handheld satellite radios, users with the IC-SAT100M do not need to stay outside for a clear view of the sky for a stable communication connection. This global satellite mobile radio’s design easily provides coverage from vehicle to in-building use. The IC-SAT100M is backed by the Iridium satellite network, covering the earth including both poles for a true wide area global communication solution.

  • One-to-Many Communication: IC-SAT100M users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.
  • Total Global Coverage, Including the Poles: Truly global PTT with iridium® push-to-talk service
  • Real-Time Communication: Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100M provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.
  • Installation: Designed for fixed mount in-building and in-vehicle operations
  • Interoperability with Conventional Radios: With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, IDAS digital, analog transceivers and other communication systems.
  • Compatibility: Compatible with Iridium Extreme® PTT push-to-talk satellite phone
  • Simple Setup: Easy wiring works between the antenna Unit and main Unit using a LAN cable

*Subscriptions are required for using the IC-SAT100M.

Icom IC-SAT100M Operation Guide

Icom IC-SAT100M Features

The Icom IC-SAT100M is a dedicated satellite push-to-talk (PTT) radio designed to be used from a vehicle, indoors, or even from the basement. It is the only PTT radio offering real-time communications at the push of a button — anywhere on the planet.

  • Two-way radio system using the Iridium® satellite network
  • One-to-Many Communications
  • Real-Time Low-Latency Communication
  • Operates 100% of the globe
  • Power supply capability over Ethernet from main unit to antenna
    (w/RF unit)
  • Secure communications with AES encryption
  • Short Data Message function
  • Multi-functional speaker microphone with display
  • Multi-language display (English, Chinese, French, Japanese, Spanish)
  • Emergency mode
  • Surveillance mode
  • Built-in Bluetooth® and GPS Receiver
  • Compatible with other Iridium® PTT devices
Global Coverage

Iridium Coverage

The distinct constellation architecture of Iridium sets it apart as the sole network with complete global coverage, ensuring that communication is possible from any point on the planet. Through cross-linking of satellites, the network boasts dependable, low-latency, and weather-resistant connections.

Iridium Coverage Map

Technical Specifications

Mechanical

  • Antenna Dimensions: 3" × 7.9 × 3" (76.8 × 200 × 76.8 mm)
  • Main Unit Dimensions: 4.9" × 1.1" × 6.2" (125 × 29 × 156.5 mm)
  • Microphone Dimensions: 2.3" × 5.3" × 1.2" (59.5 × 134.6 × 30.1 mm)
  • Antenna Weight: 1.1 lb (500 g)
  • Main unit + Microphone Weight: 2.6 lb (1200 g)

Frequency

  • Frequency Range: 1616 MHz to 1626.5 MHz

Environmental

  • Operating Temperature Range: –22°F to 140°F (–30°C to 60°C)
  • Durability Standard: MIL-810 G
  • Ingress Protection: IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit)

Power

  • Audio Output Power Internal Speaker: 1500 mW typical (8 Ω load)
  • Audio Output Power External speaker: 4 W typical (4 Ω load)
  • Power Supply Voltage: 13.2 V / 26.4 V DC (10.5–32 V DC)

Antenna

  • Antenna Connector: SMA (for external antenna),
  • Antenna: Antenna with RF unit
  • Distance from Radio to Antenna: Maximum 328.1' (100 m)

Talkgroup

  • Talkgroup: 15 groups (Maximum)

What's in the Box

  • Icom IC-SAT100M Satellite PTT Mobile Radio
  • Antenna unit with RF unit
  • Multi-functional speaker-microphone
  • OPC-2435 DC power cable
  • OPC-2102 LAN cable (20 m, 65.6 ft)
  • Mobile bracket for the main unit
  • Antenna angle and mounting kits
Icom IC-SAT100M Satellite PTT Mobile Radio (Push-To-Talk)

Iridium Satellite PTT Service Plans

Iridium offers service plans for PTT devices with durations of either three (3) months or twelve (12) months. Both options provide unlimited PTT usage and flexible pricing based on the size of the coverage area, ensuring convenience and cost-effectiveness.
