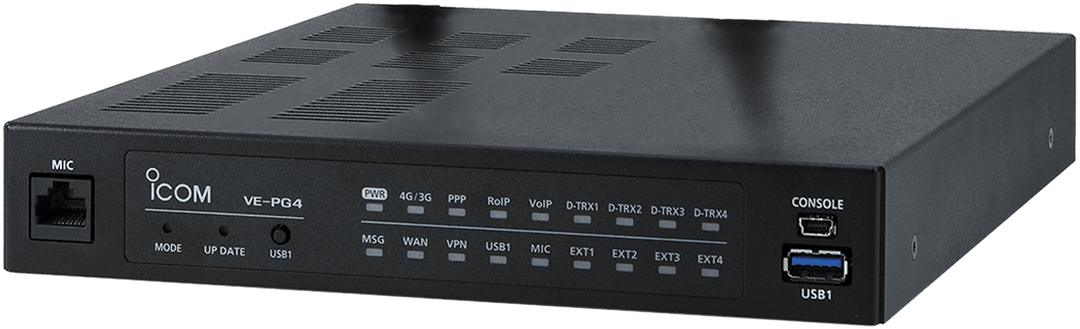

Icom VE-PG4 RoIP Gateway

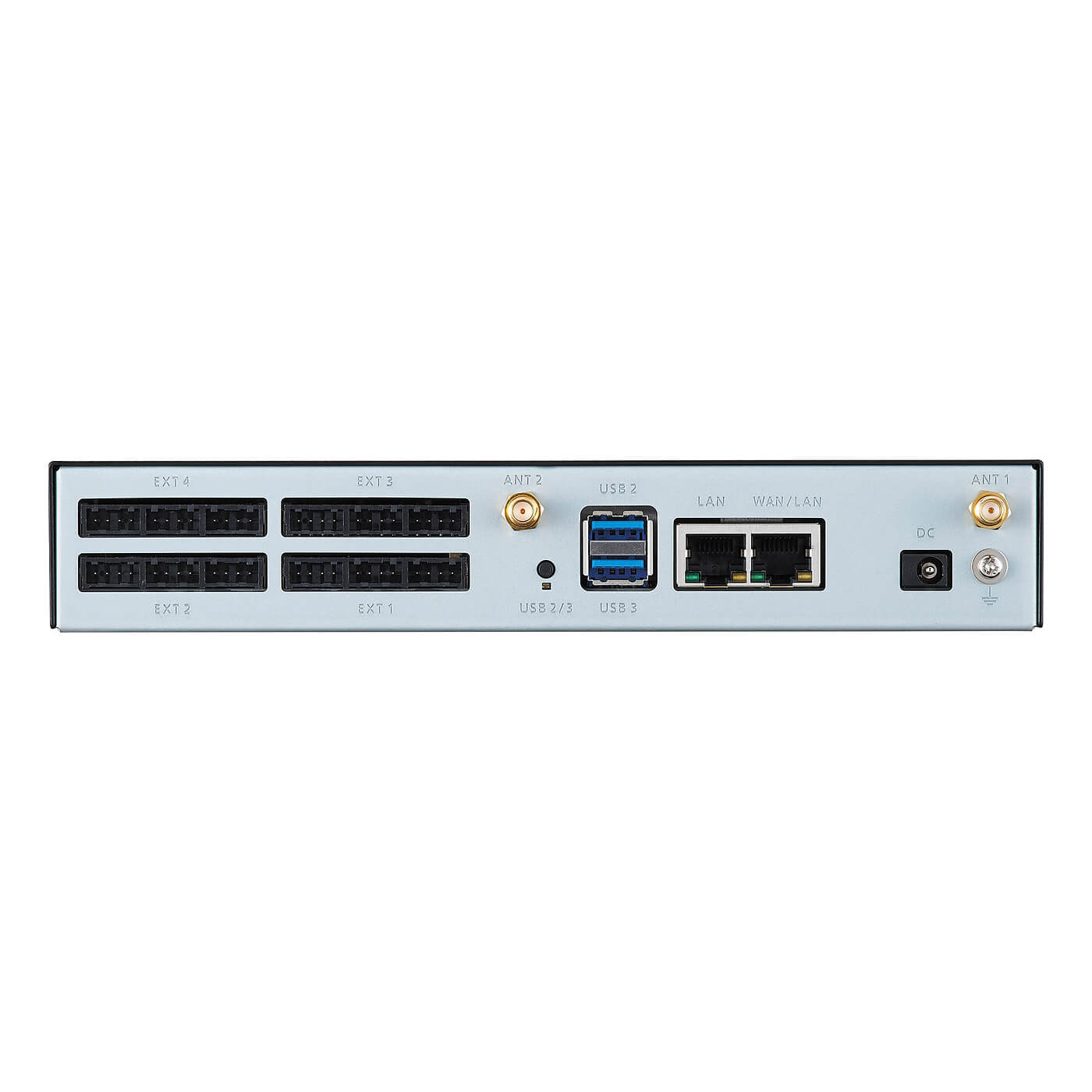

Icom VE-PG4 RoIP Gateway back

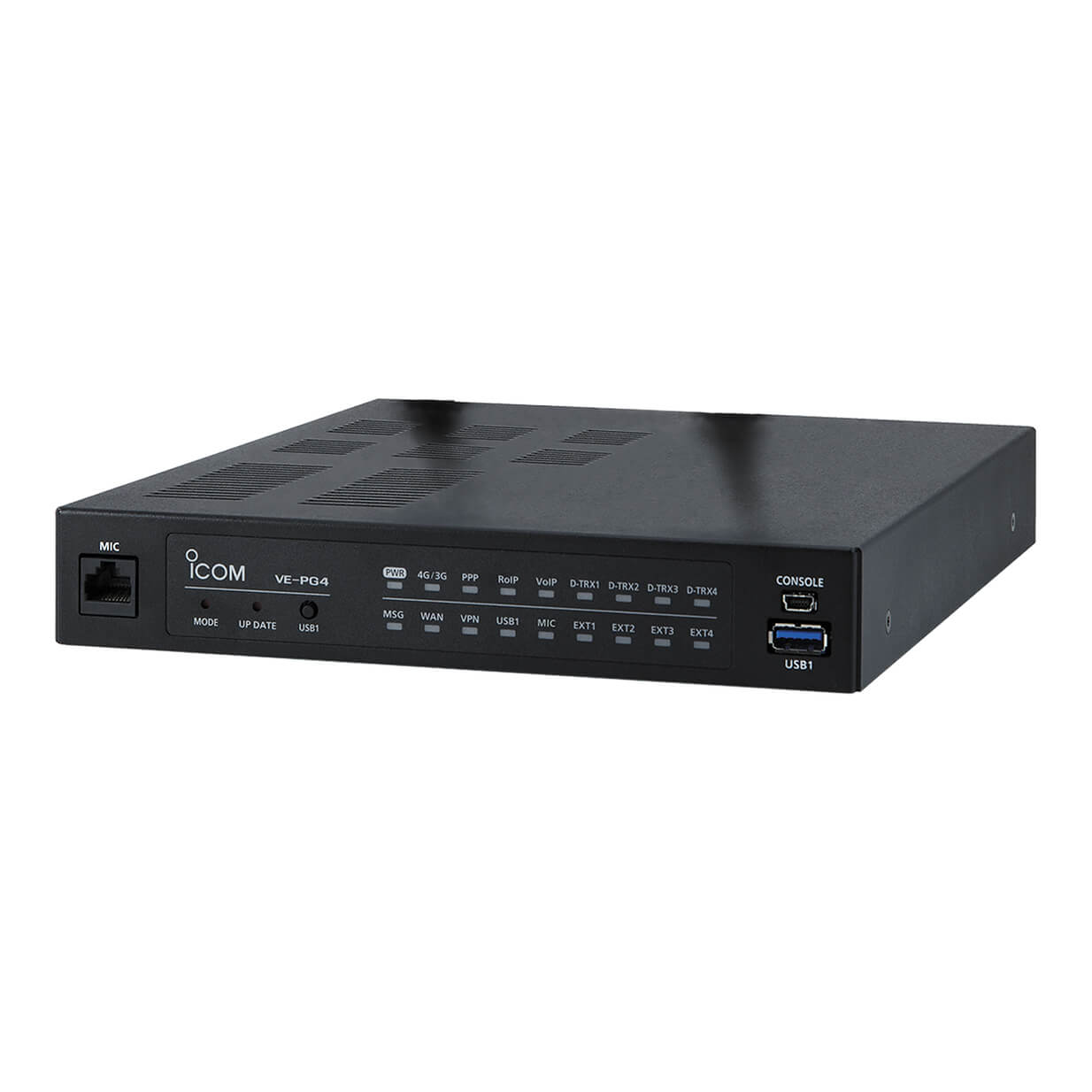

Icom VE-PG4 RoIP Gateway

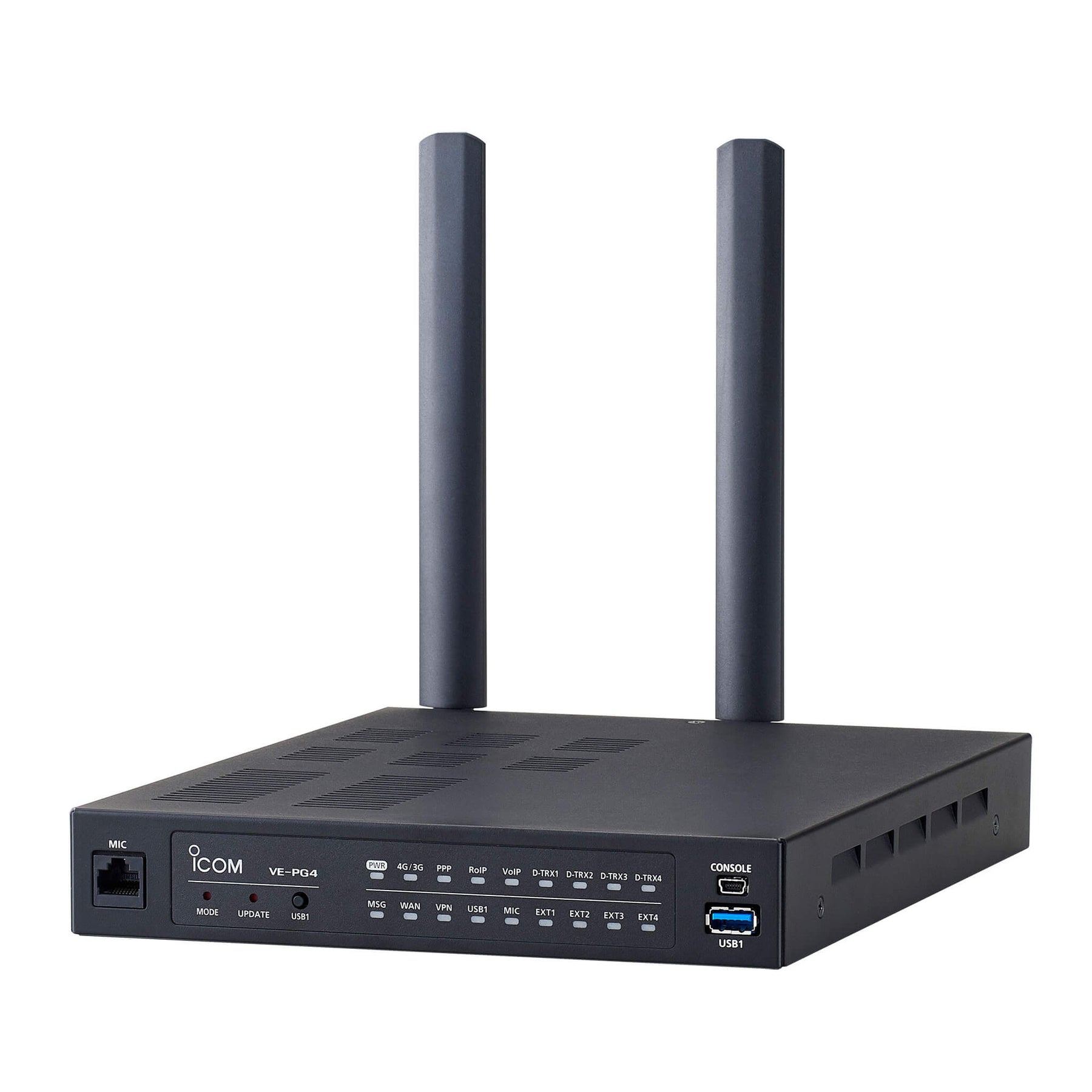

Icom VE-PG4 RoIP Gateway

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Network: LTE

Ensures Cooperative Information Sharing Across Systems and Devices

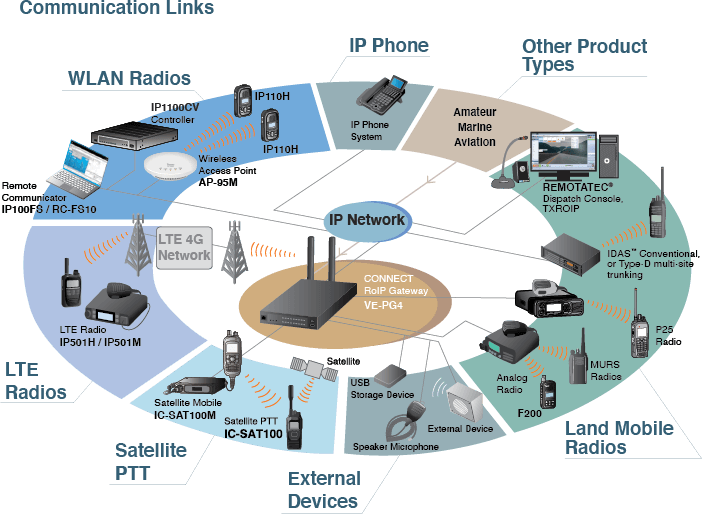

Bridges Your Land Mobile Radio Systems

The VE-PG4 allows you to bridge almost any modern communications system to Icom’s universe of Network products and more. Interconnect a variety of radio protocols from Icom’s IDAS™ conventional/trunking systems, wireless LAN, analog, P25, DMR systems, and even SIP phones. Enhance and ensure communication for any operation.

Icom Solutions for Utilities (LTE, Hybrid and Satellite Transceivers)

Icom VE-PG4 RoIP Gateway

Icom VE-PG4 Features

  • All in one package
  • Call recording to USB drive
  • Microphone connection for base operation
  • Position and status information
  • Remote communicator software, RC-FS10
  • Serial pass-through function
  • SIP server IP-PBX functions
  • Router functions with VPN tunnel
  • Half-width 1U form design
  • Online firmware update

Icom CONNECT Coverage

Icom CONNECT uses (4G) networks in the US and Canada. This map displays approximate outdoor coverage. Actual coverage may vary. Coverage isn’t guaranteed and is subject to change without notice.

Icom CONNECT Coverage

Technical Specifications

Mechanical

  • Dimensions: 8.4" W × 1.4" H × 10.6" D (213 × 36.8 × 270 mm)
  • Weight: 4 lbs (1.8 kg)

Power Supply

  • 12 V DC ±10%, 4 A maximum
  • 100–240 V AC (with the supplied AC adaptor)

Network

  • 4G bands: LTE B2, B4, B12
  • 3G bands: W-CDMA B2, B5

Environmental

  • Operating Temperature Range: +32 to 104°F (0 to 40°C)
  • Operating Humidity: 5–95% (at no condensation)
  • Regulatory compliance: FCC Part 15 Class B/ ICES003, Part22, Part24, Part27, EN301 489-1, EN301 489-19, EN301 489-52, EN301 908-1, EN301 908-2, EN301 908-13, EN303 413, EN62479, EN62311, EN62368-1

Interface

  • LAN/WAN: RJ-45 type × 1 (Auto MDI/MDI-X), 10BASE-T/100BASE-TX/1000BASE-T
  • LAN: RJ-45 type × 1 (Auto MDI/MDI-X), 10BASE-T/100BASE-TX/1000BASE-T

USB

  • USB Host Interface: USB 3.0 Standard A receptacles ×3
  • Console Interface: USB 2.0 mini B receptacles ×1

External Port

  • Connectors: 2.54 mm (0.1 in) pitch quick connector (4 terminals ×3) ×4
  • Audio Input: –10 dBs/–40 dBs selectable, Input impedance 10 kΩ unbalance
  • Audio Output: 0 dBs/–20 dBs selectable 600 Ω load, unbalance/8 Ω 1 W speaker
  • Control Input: Low voltage contacts (3.3 V DC/ 1 mA)/Voltage input (3–16 V)
  • Control Output: No voltage contacts (30 V/ 100 mA)/Open collector (3–16 V 10 mA)

What's in the Box

  • Icom VE-PG4
  • Antennas
  • Antenna bases with 1.5m (4.9 ft) cable
  • BC-236, AC adapter
  • Quick connectors
Icom VE-PG4 RoIP Gateway

All in One Package

The VE-PG4 includes built-in RoIP, SIP gateway, IP router, IP PBX and IP communication terminal controller functions, in one box. In comparison with a similar system combining several devices, installation and administration of the integrated VE-PG4 can be simpler, with less confliction of settings.
