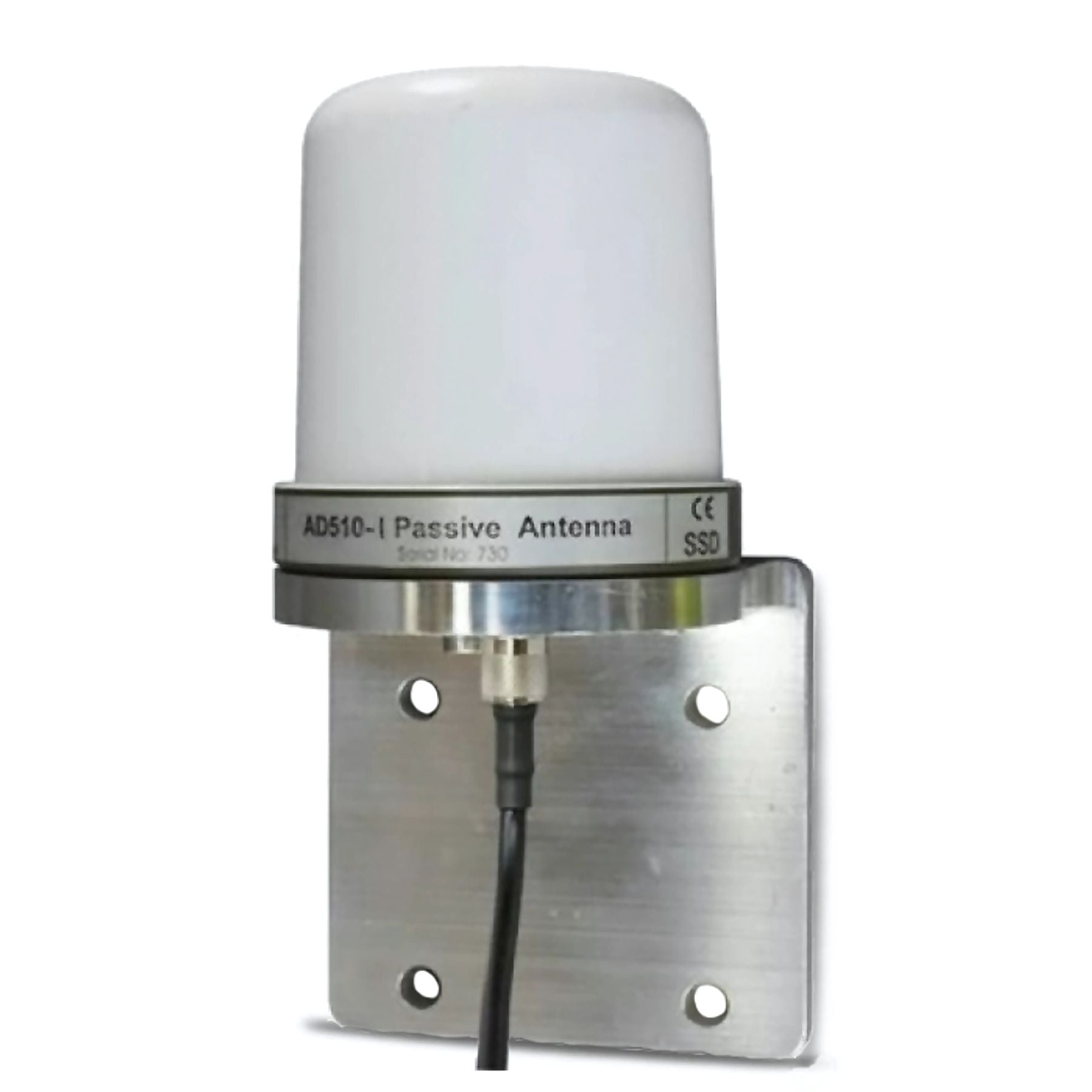

Iridium AD510-1 Passive Antenna
Iridium AD510-1 Passive Antenna

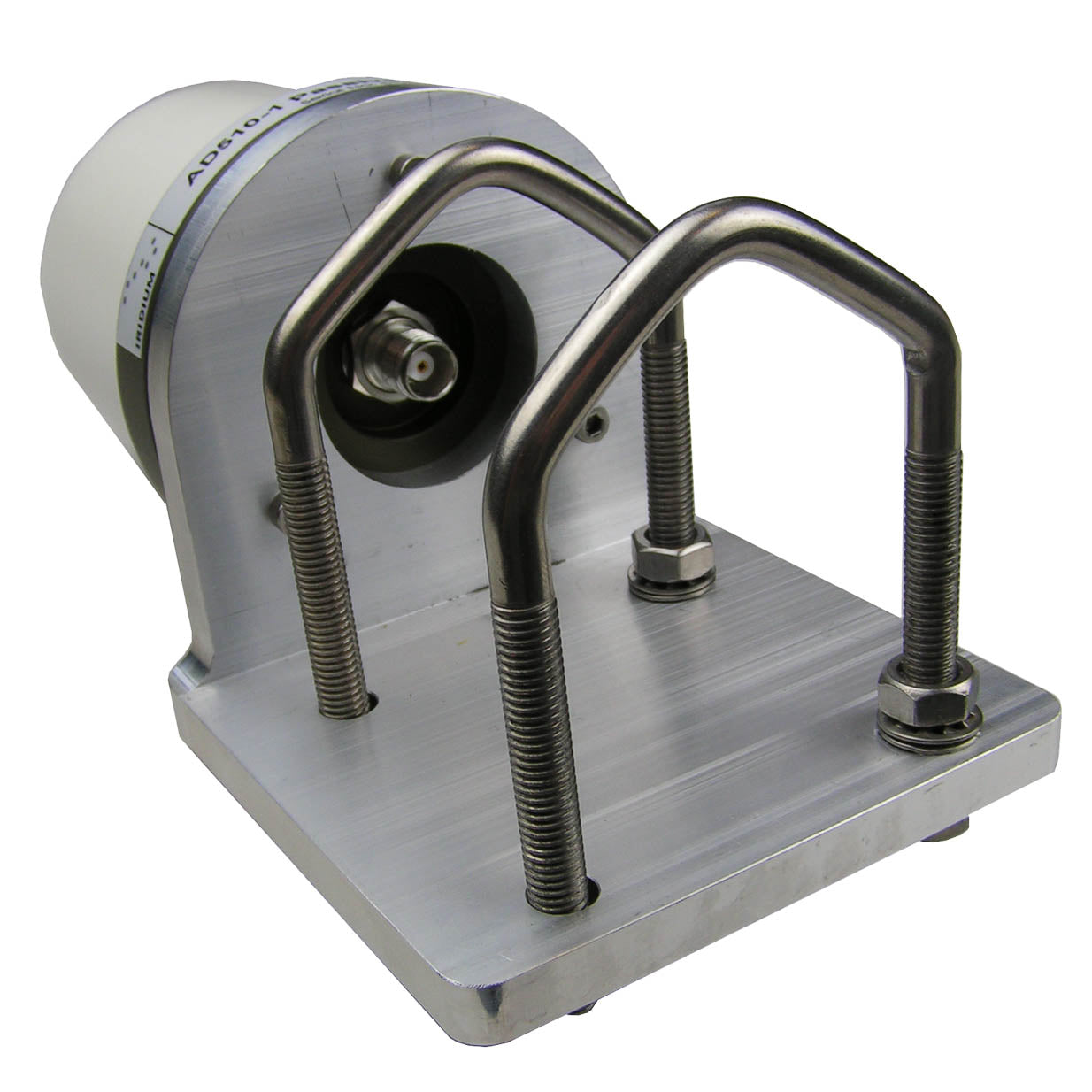

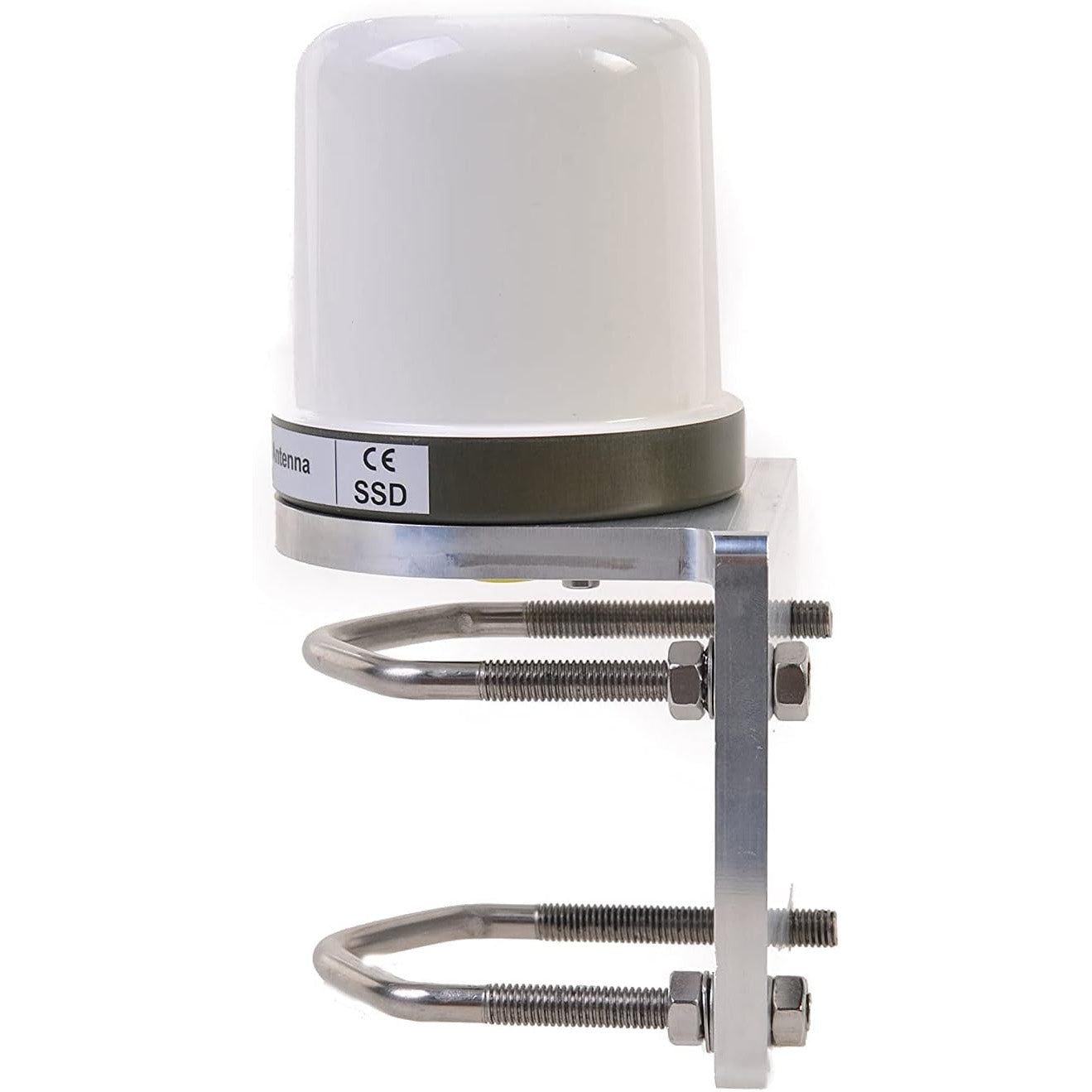

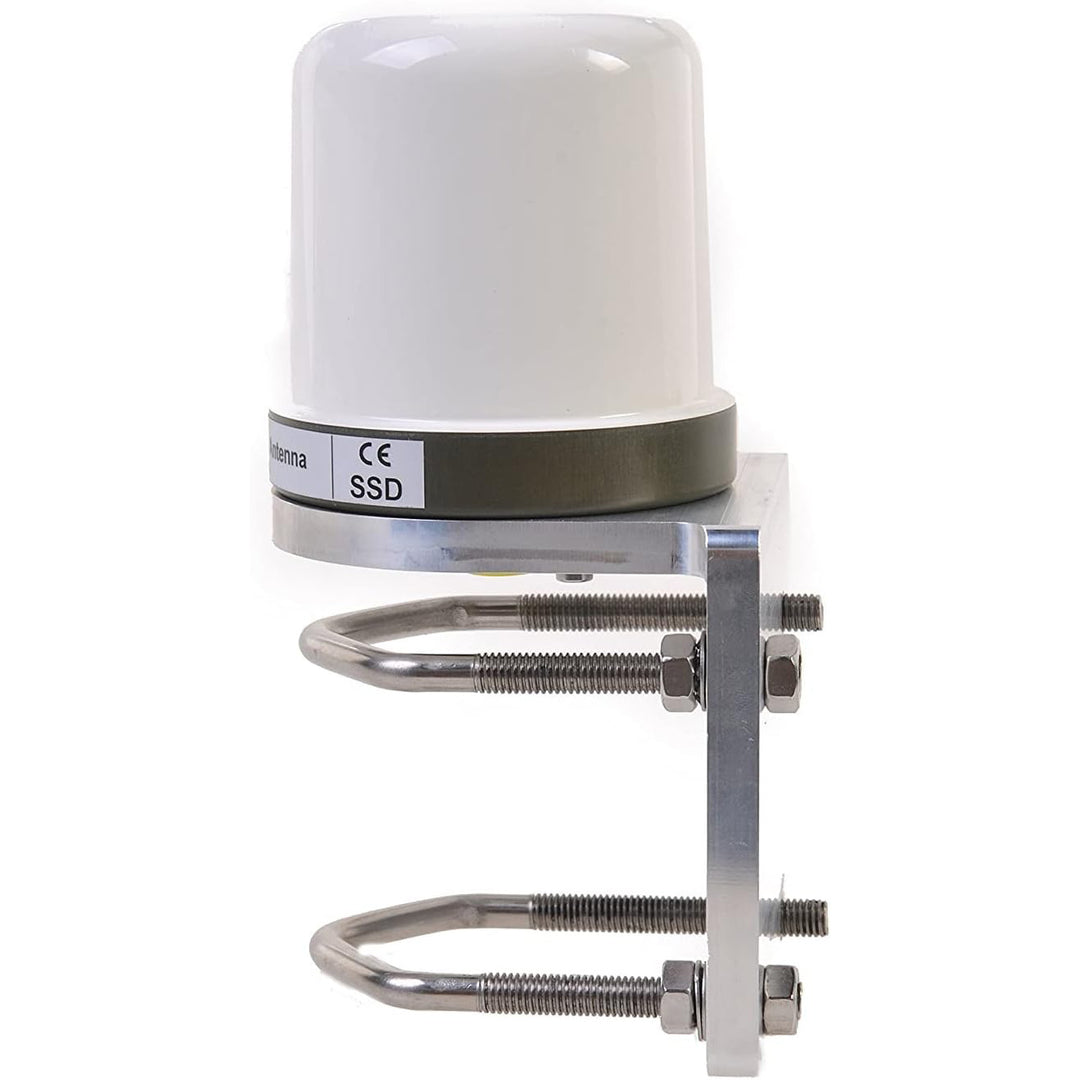

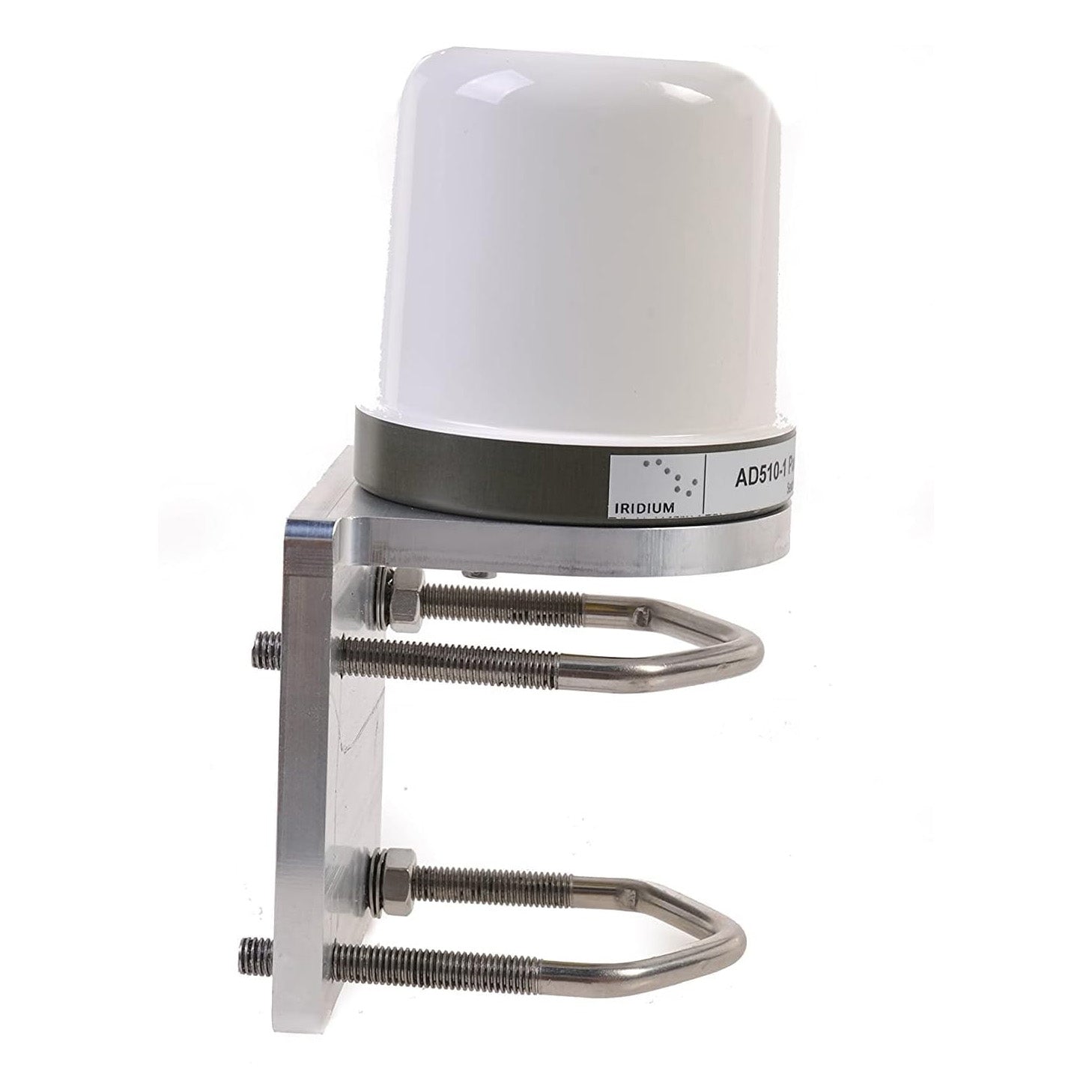

Iridium AD510-1 Passive Antenna w/ Pole Mount side

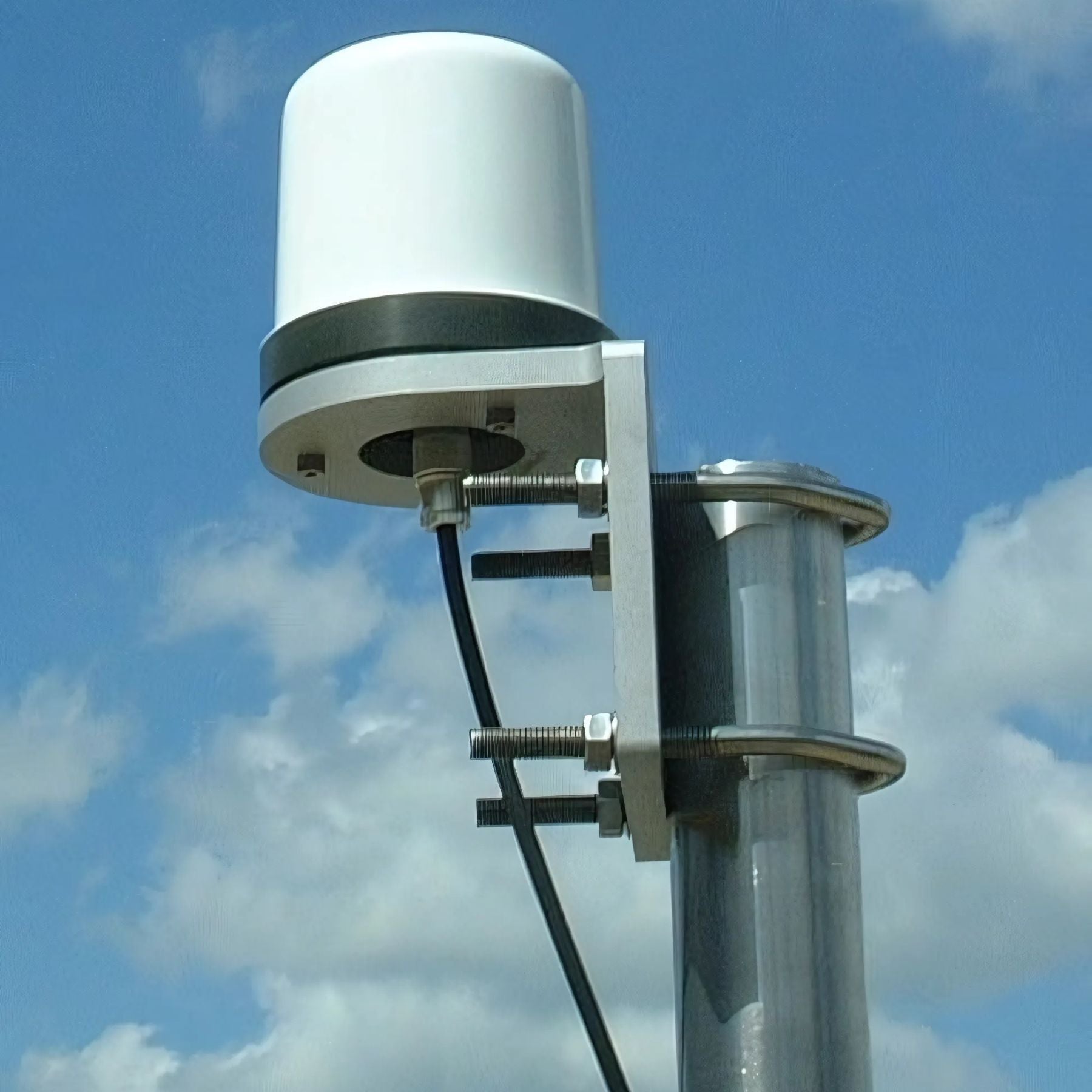

Iridium AD510-1 Passive Antenna w/ Pole Mount
Iridium AD510-1 Passive Antenna w/ Pole Mount side

Iridium AD510-1 Passive Antenna w/ Pole Mount

Regular price$320.00
/
  • Satellite Network: Iridium

Iridium AD510-1 Passive Antenna for Iridium Satellite Phones

Iridium AD510-1 passive antenna provides superior performance with all the Iridium series satellite phones for external mounting in land or marine applications. The radome is 4 mm GRP/polyester mix while the base is milled from hard anodized aluminum, giving an attractive green finish, which is mechanically resilient and resistant to corrosion making this antenna exceptionally robust for harsh environments and for free air mounting installations.

The bracket provided with this antenna can be attached to vertical or horizontal spars, up to 60 mm in diameter, using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC Male type on the underside of the antenna.

The AD510-1 Passive Antenna operates over the global Iridium satellite network.

Box Contents of the Iridium AD510-1 Passive Antenna

  • Mounting Bracket
  • Heavy Duty Marine Alloy
  • Vertical or horizontal pole mount. (Pole mount up to 6 cm)
  • Supplied complete with stainless U bolts and nuts

Technical Specification

  • Max. Diameter: 3.43" (8.7 cm) Antenna
  • Height (including Connector): 3.94" (10 cm)
  • Weight (including Bracket):  2.2 lbs (1 kg)
  • Operating Temperature: -40° to 185°F (-40° to 85°C)
  • Connector: TNC Male
  • VSWR: <2: 1
  • Impedance: 50 ohms
  • Frequency: 1610-1630 Mhz
  • Polarization: Right hand circular
  • Network: Iridium
