Beam Mast/Pole/Rail Mount Antenna RST210

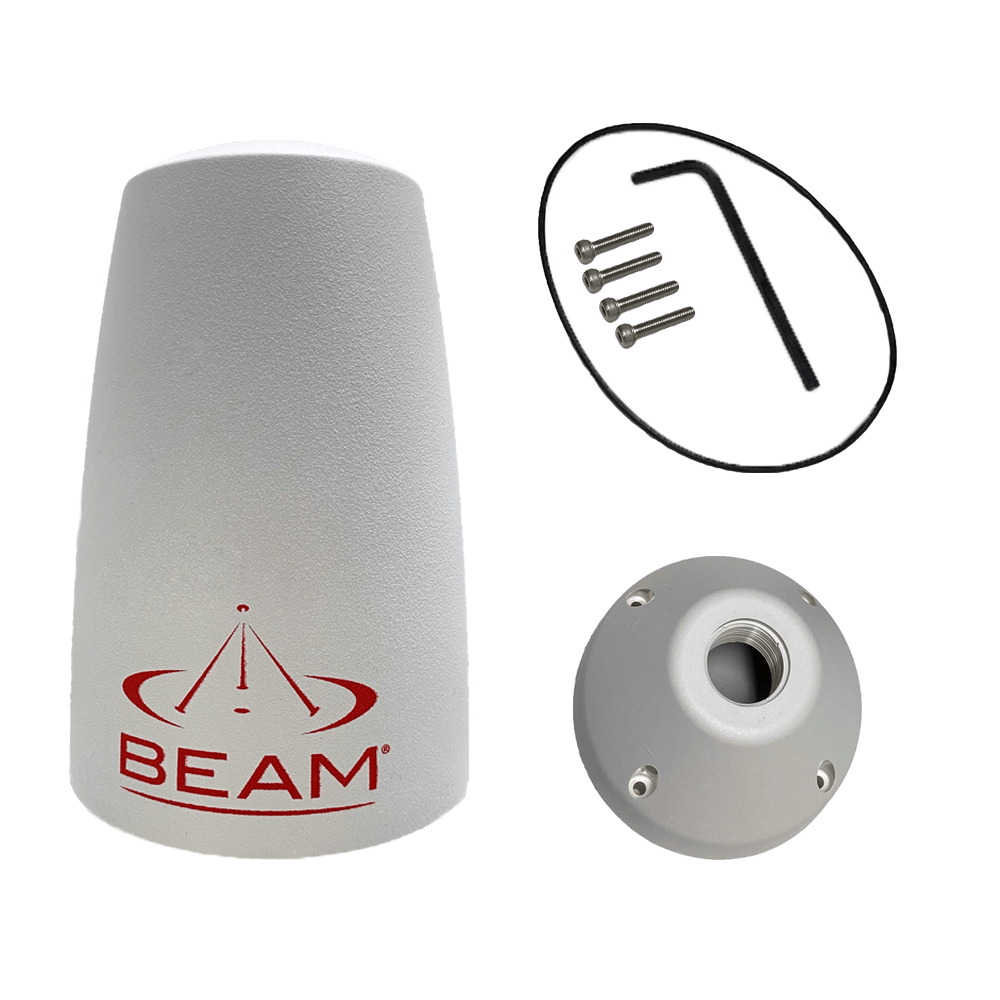

Beam Mast/Pole/Rail Mount Antenna RST210 with base and screws

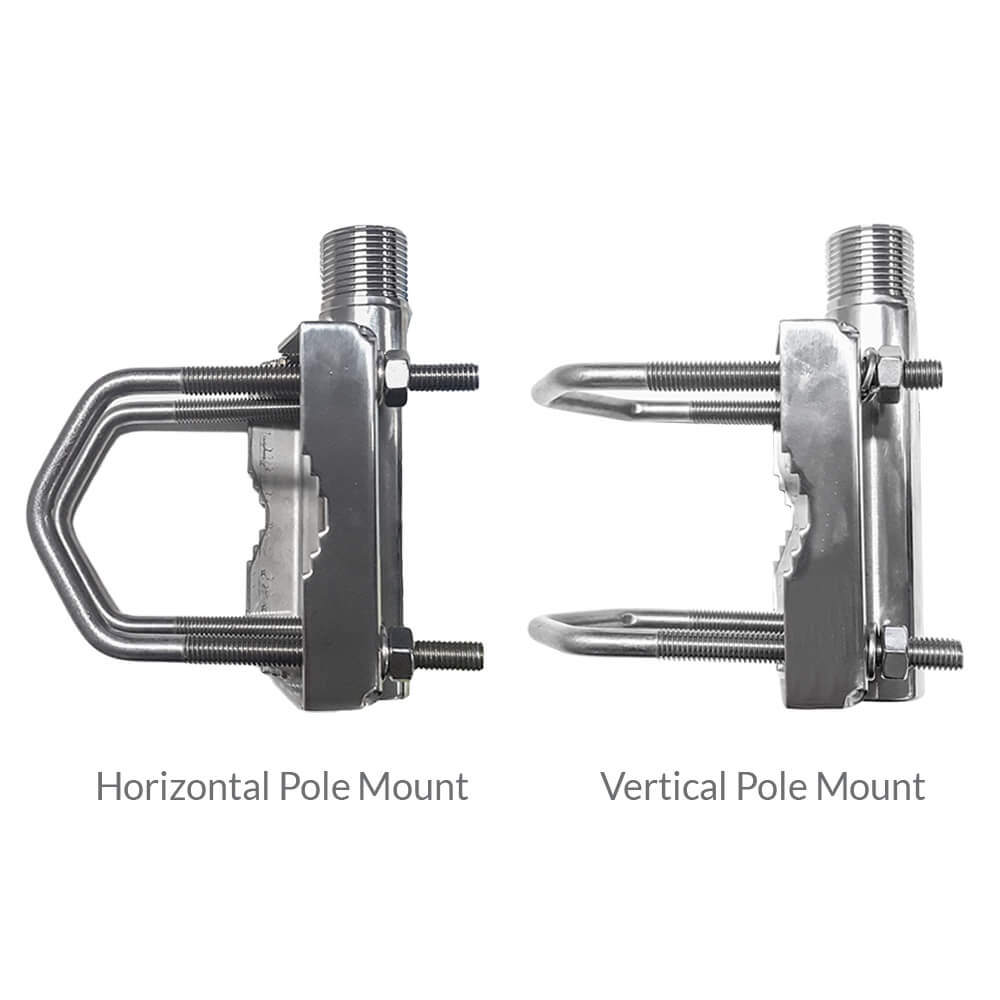

Beam Mast/Pole/Rail Mount Antenna RST210 mounts

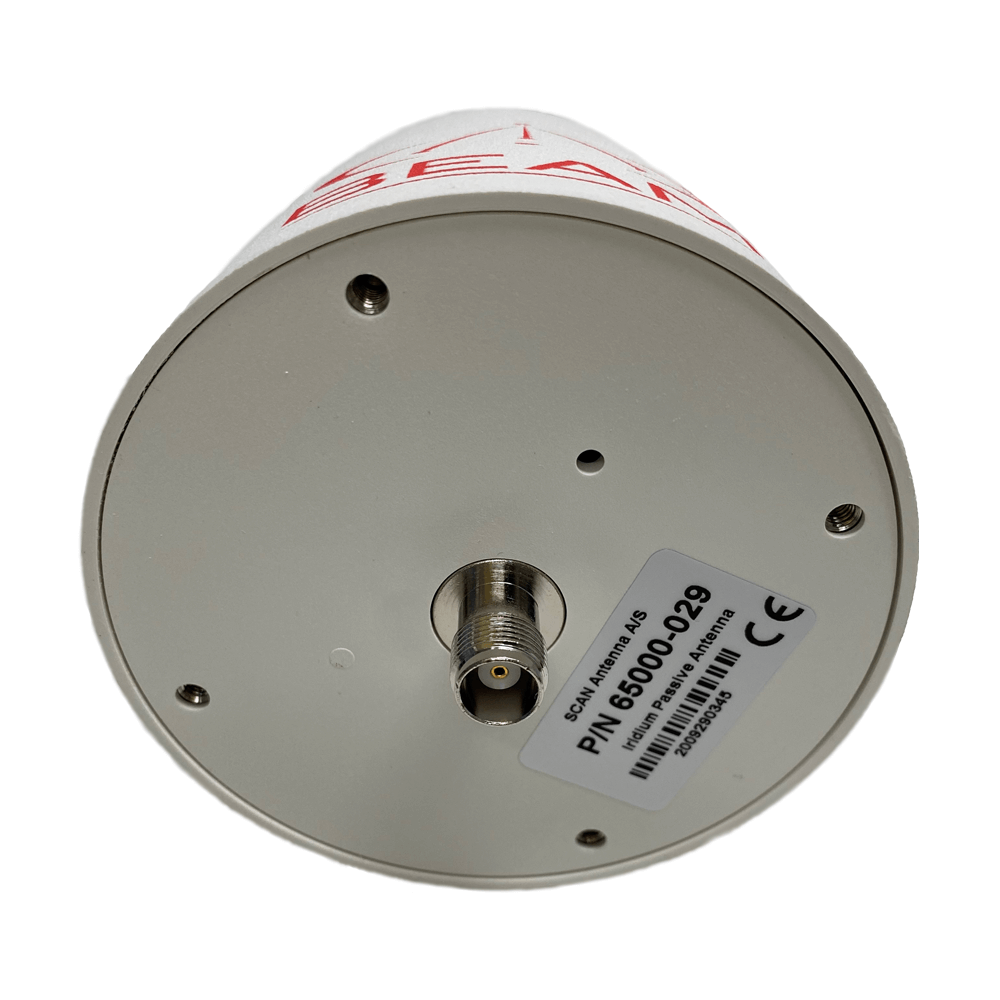

Beam Mast/Pole/Rail Mount Antenna RST210 base

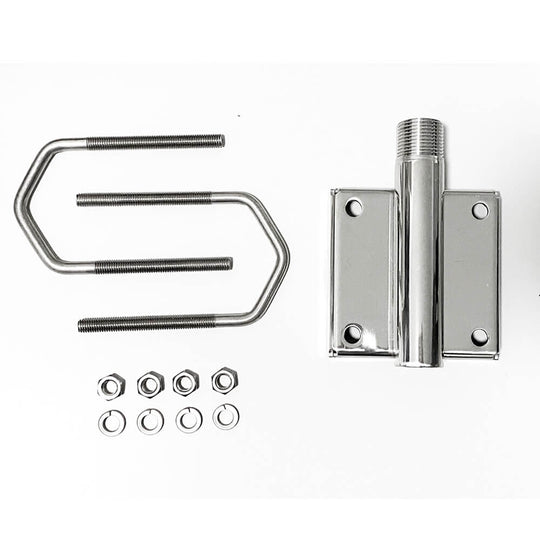

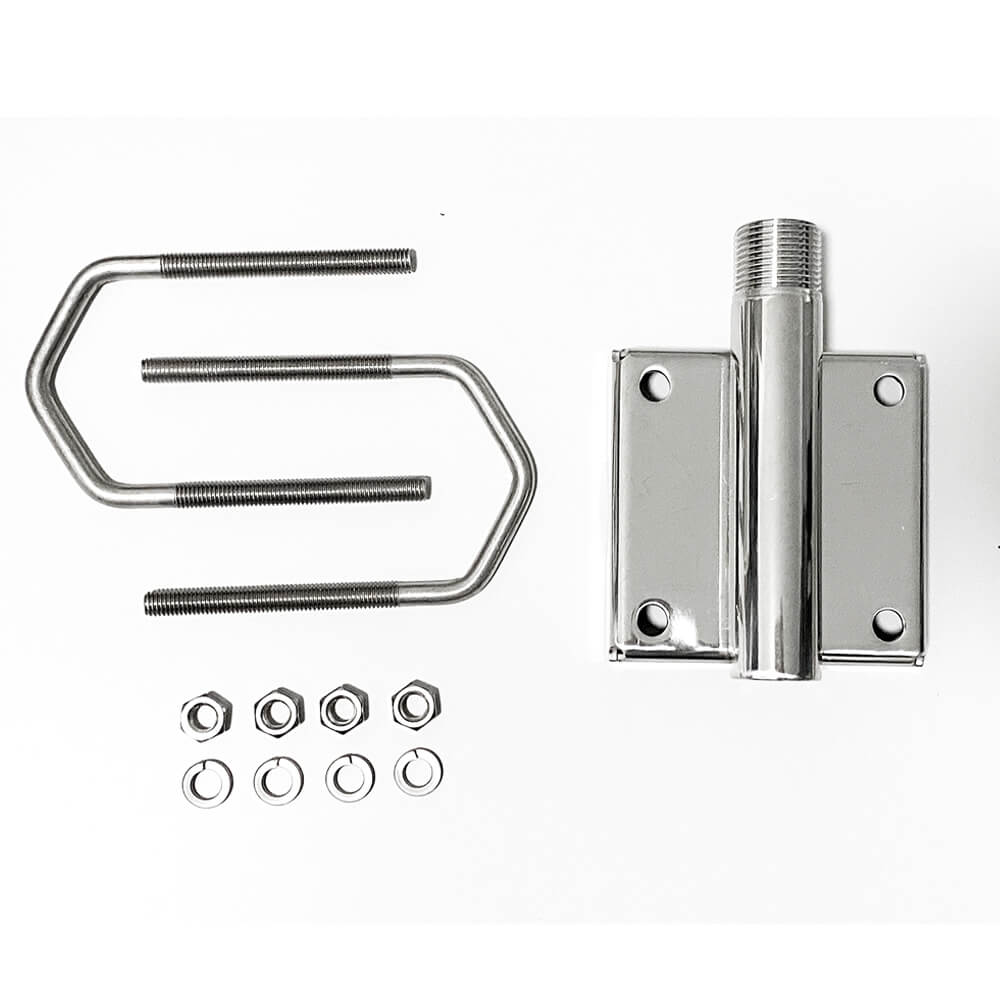

Beam Mast/Pole/Rail Mount Antenna RST210 bracket

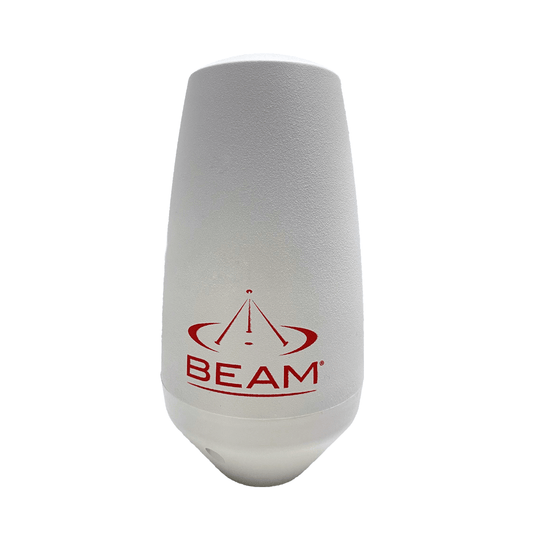

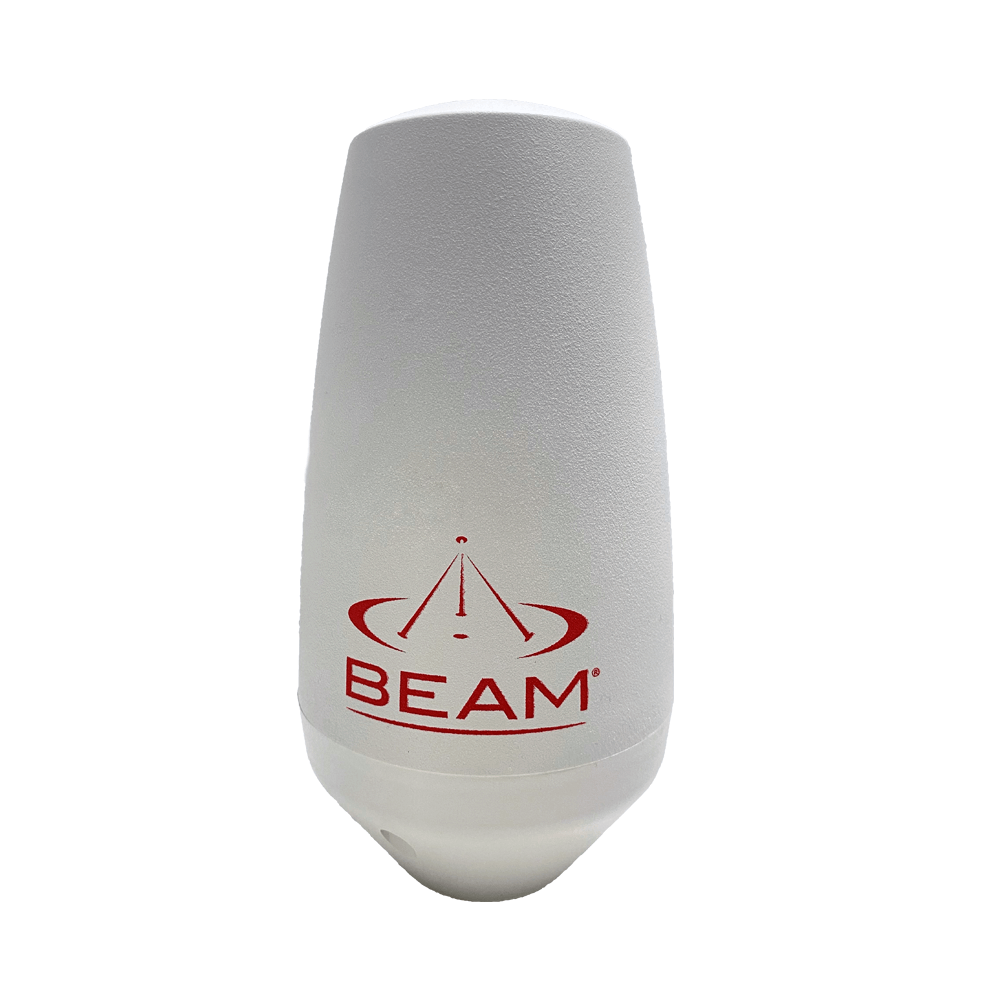

Beam Mast/Pole/Rail Mount Antenna (RST210)

Please note, the RST210 is no longer available and has been replaced with the AeroAntenna Iridium Antenna Mast Mount.

The RST210 is an omni-directional passive antenna for easy installation. Designed for maritime and fixed building applications, the RST210 has a rugged design making it ideal for harsh weather conditions. The RST210 is not suited to land based transport applications.

RST210 Features

  • Iridium Approved
  • Best suited for Maritime applications
  • Designed for tough weather conditions (IP68)
  • Mounts on any US-style Mounting Bracket with 1"-14NF threaded stud (not supplied)
  • 12-Month Warranty

Technical Specifications

  • Colour: White
  • Material: ASA
  • Mounting Type: Any US-style Mounting Bracket with 1
  • Ingress Protection: IP68 Dustproof and waterproof - can be submerged in water for 30 minutes at a depth of 1-meter
  • Antenna Dimensions (D x H): Ø 3.7" x 6" (7.5" mounting base included) (Ø 9.5cm X 15cm (19.15cm mounting base included))
  • Box(L x W x H): 5" x 11.4" x 4" (12.7cm x 29cm x 102cm)
  • Antenna Weight: 1.9lbs (0.87 kg) (inc bracket)
  • Operating and Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Frequency: 1616-1626.5 MHz
  • Polarization Right Hand Circular
  • Axial Ratio: < 6 dB
  • Impedance: 50 Ohms
  • VSWR: < 1.5
  • Cable: No cables supplied
  • Iridium Connector: TNC-F
